Linear spotlights are the heart of exhibition-space lighting: slim LED spotlights that bathe exhibits, graphics and walls in even, brilliant light. You connect them to one another simply via power-in and power-out, set the colour temperature with the Tri-Color switch, and mount them on practically any stand-construction system, from a pop-up wall to a truss structure at five metres' height. A single spotlight provides an accent, while a row of connected spotlights creates an overall impression.
Linear spotlights are easily connected to one another via power-in and power-out. From a single connection you can thus power an entire row of spotlights, without complex wiring and without visible cables. Plug & play connection means you set up the stand lighting in a few minutes and expand it as needed.
Set the colour temperature of the light directly on the spotlight itself with the Tri-Color switch. The same spotlights can thus be switched from warm white to neutral or cool white, with no change of equipment and no additional controllers. One luminaire, three moods.
All linear spotlights are available in colour temperatures from 3000 K (warm white) and 4000 K (neutral white) to 5700 K (cool white). This way you adapt the light to the desired atmosphere and look of the exhibition space: warm white creates a pleasant, welcoming mood, while cool white shows exhibits in a sharp, technically polished way.
Use the same linear spotlight on different stand-construction systems. A wide range of mounting clamps is available, allowing installation on classic timber construction, a pop-up wall or a modular system such as Aluvision, beMatrix, Octanorm, Syma, Modul and others. With special clamps you can also fix the spotlight to a truss structure.
Every set-up requires its own light. A pop-up wall needs a different approach than a three-metre-high wall or a truss structure at five metres' height. Choose the spotlight according to the desired mounting height and the clamps according to the supporting system, and the lighting will suit every exhibition space.

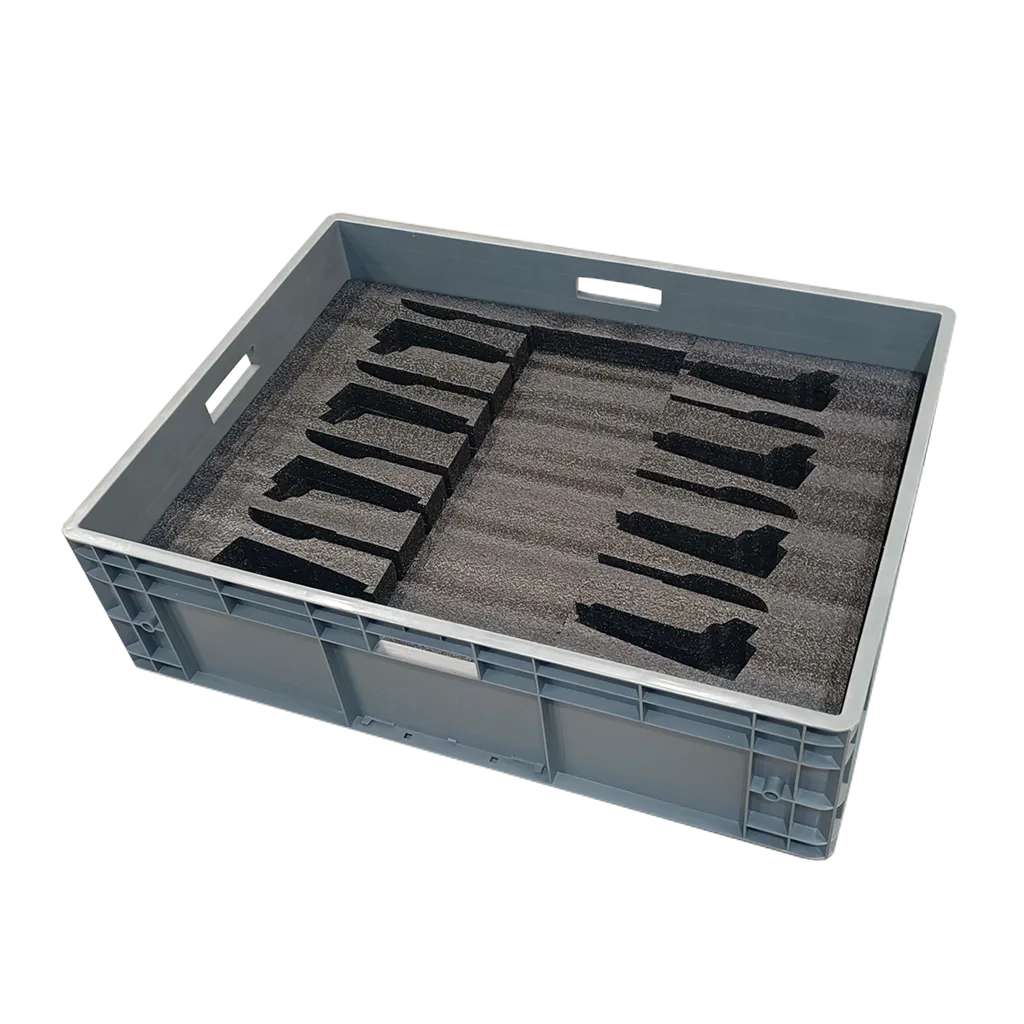

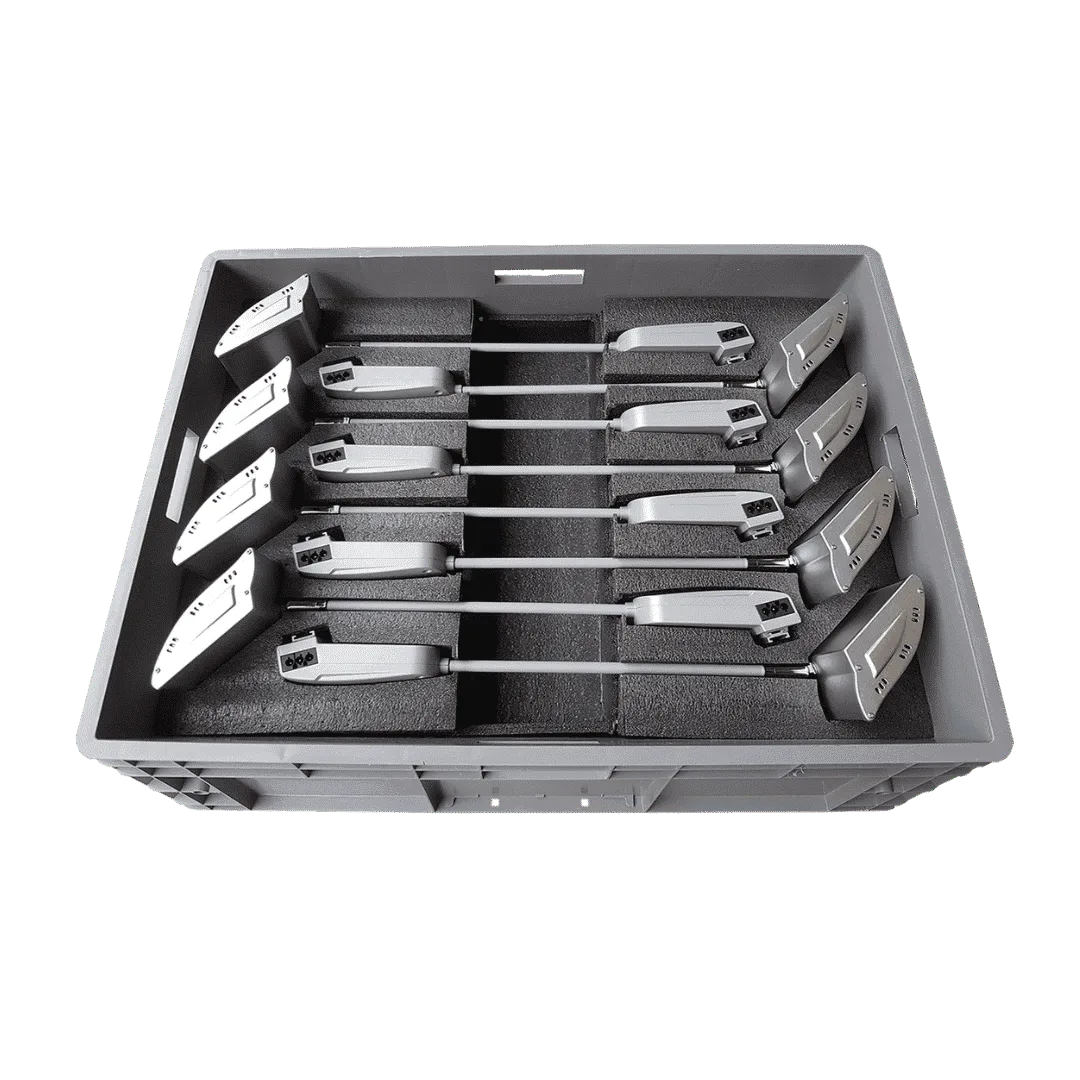

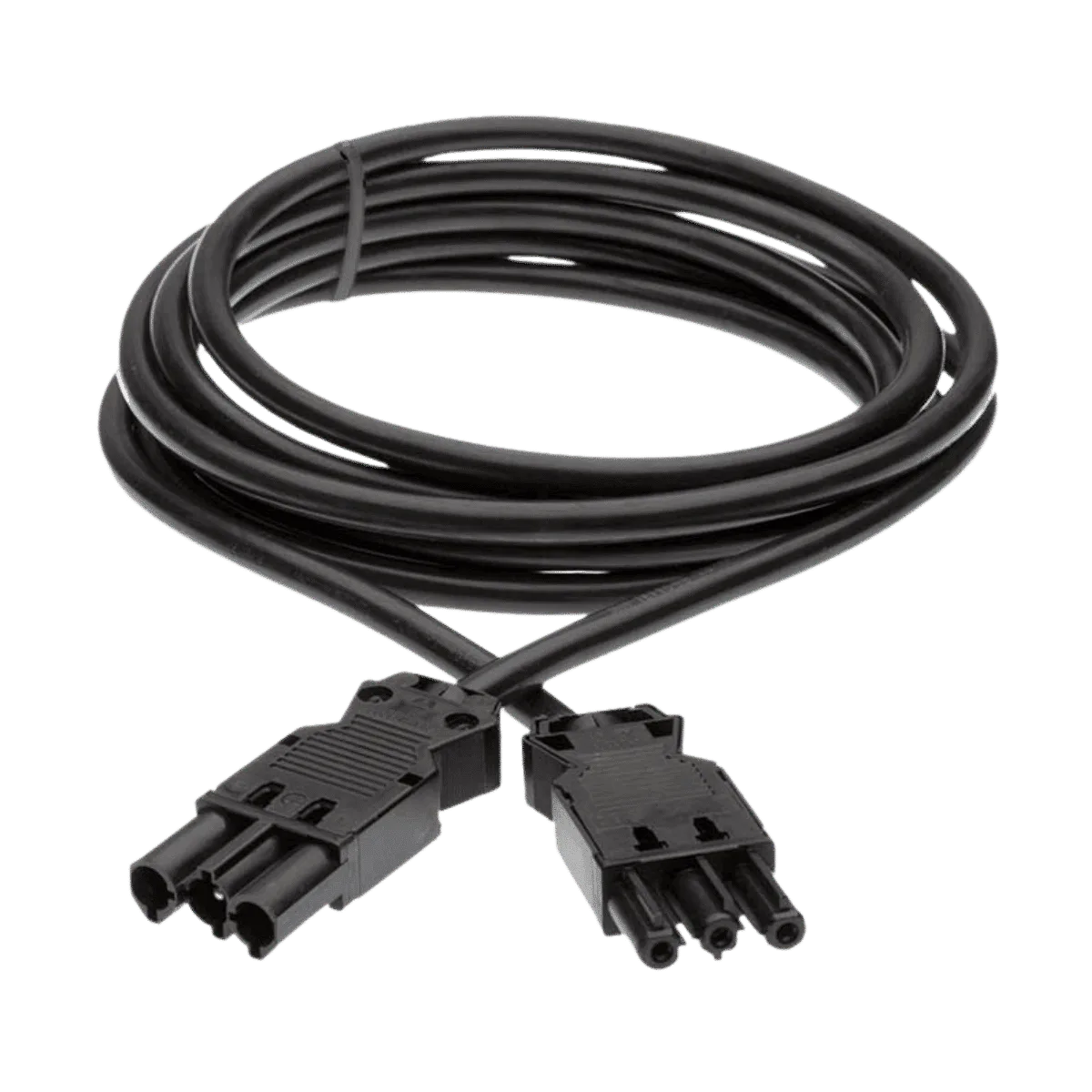

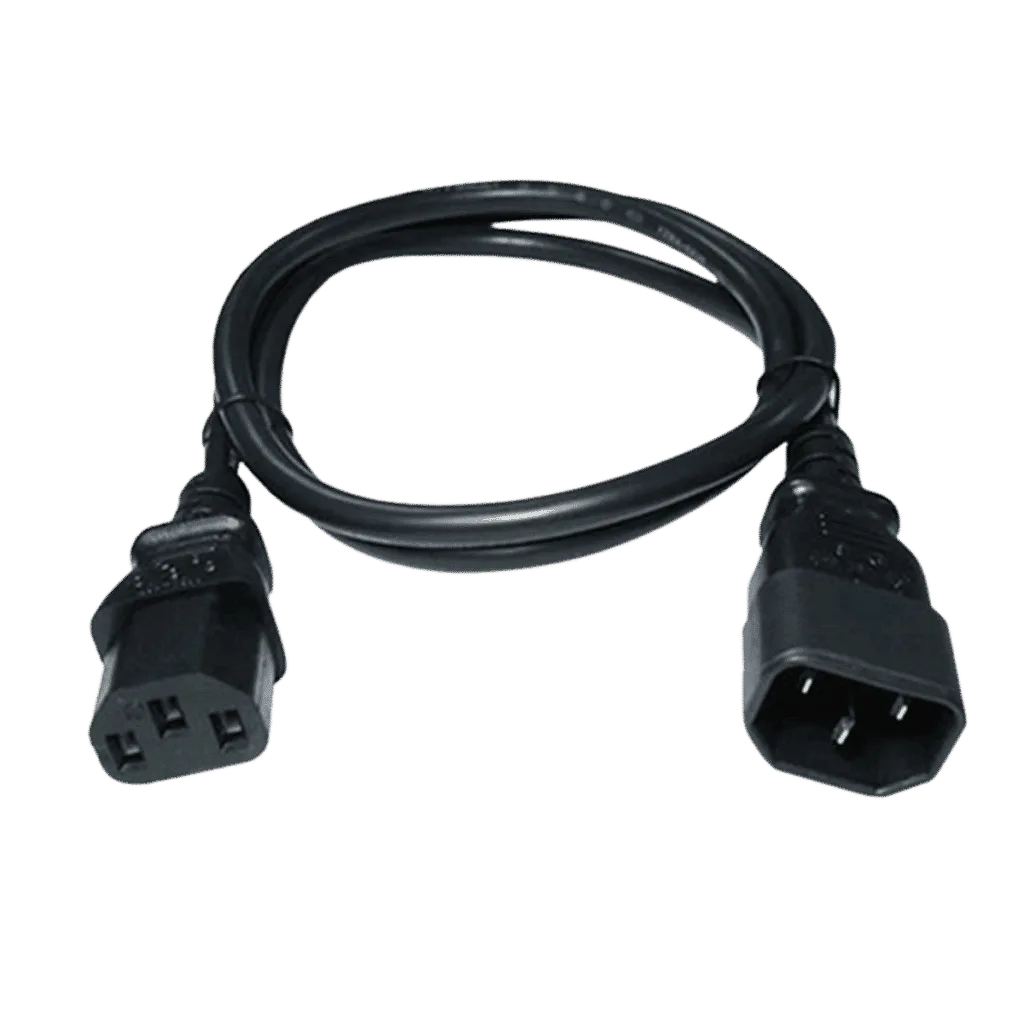

In addition to the mounting clamps, practical accessories are available. A transport case ensures safe and simple transport of the spotlights. Link cables in various lengths allow several linear spotlights to be connected to one another in a row. For extra safety when working at height, a safety cable is also available with which you hook the luminaire onto a truss or similar structure.
All linear spotlights carry the CE mark. To guarantee that the products meet the set quality requirements and are safe and environmentally responsible, all spotlights are equipped with strict TÜV certification. They thus meet European standards for safety and environmental protection.

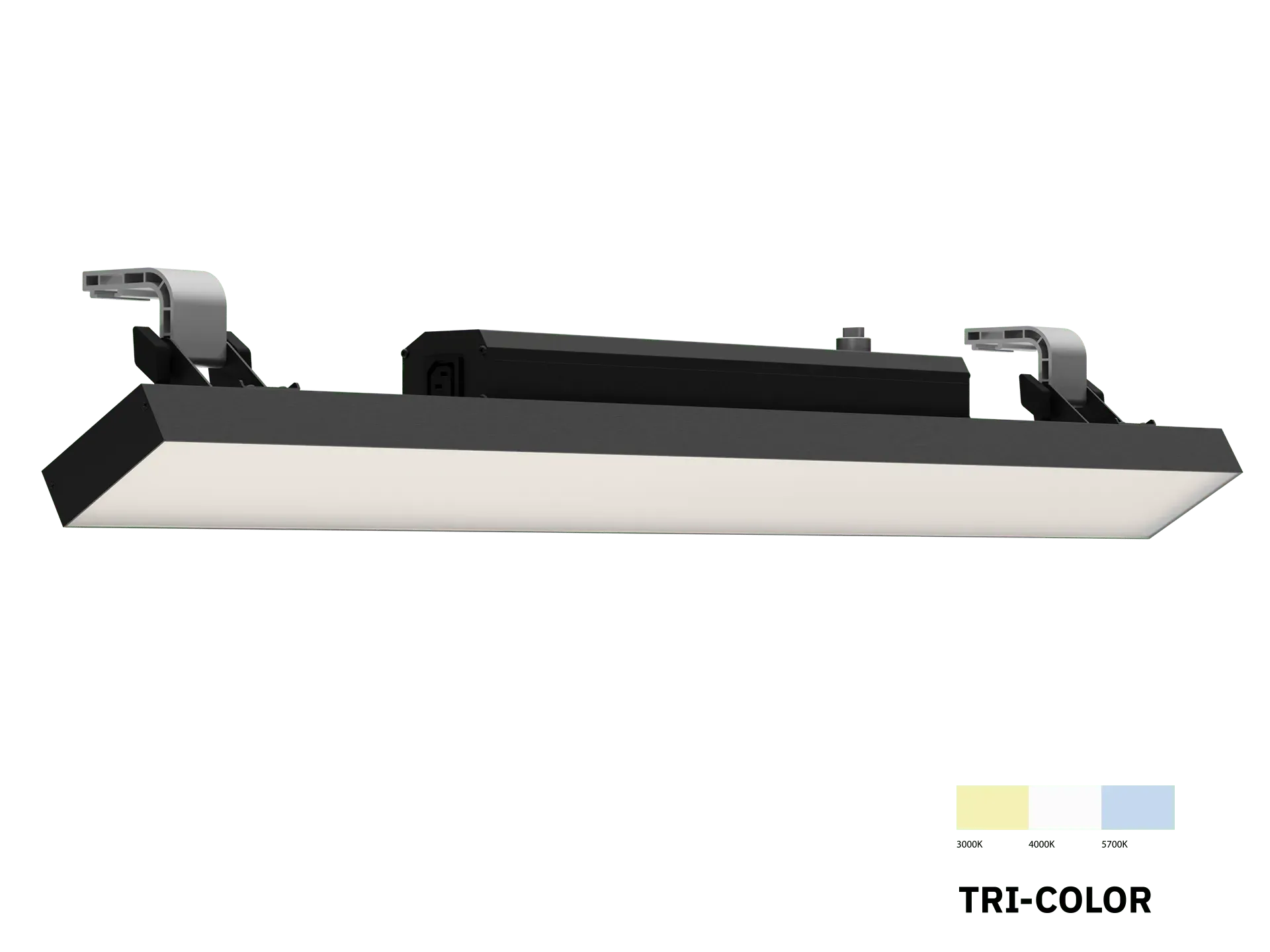

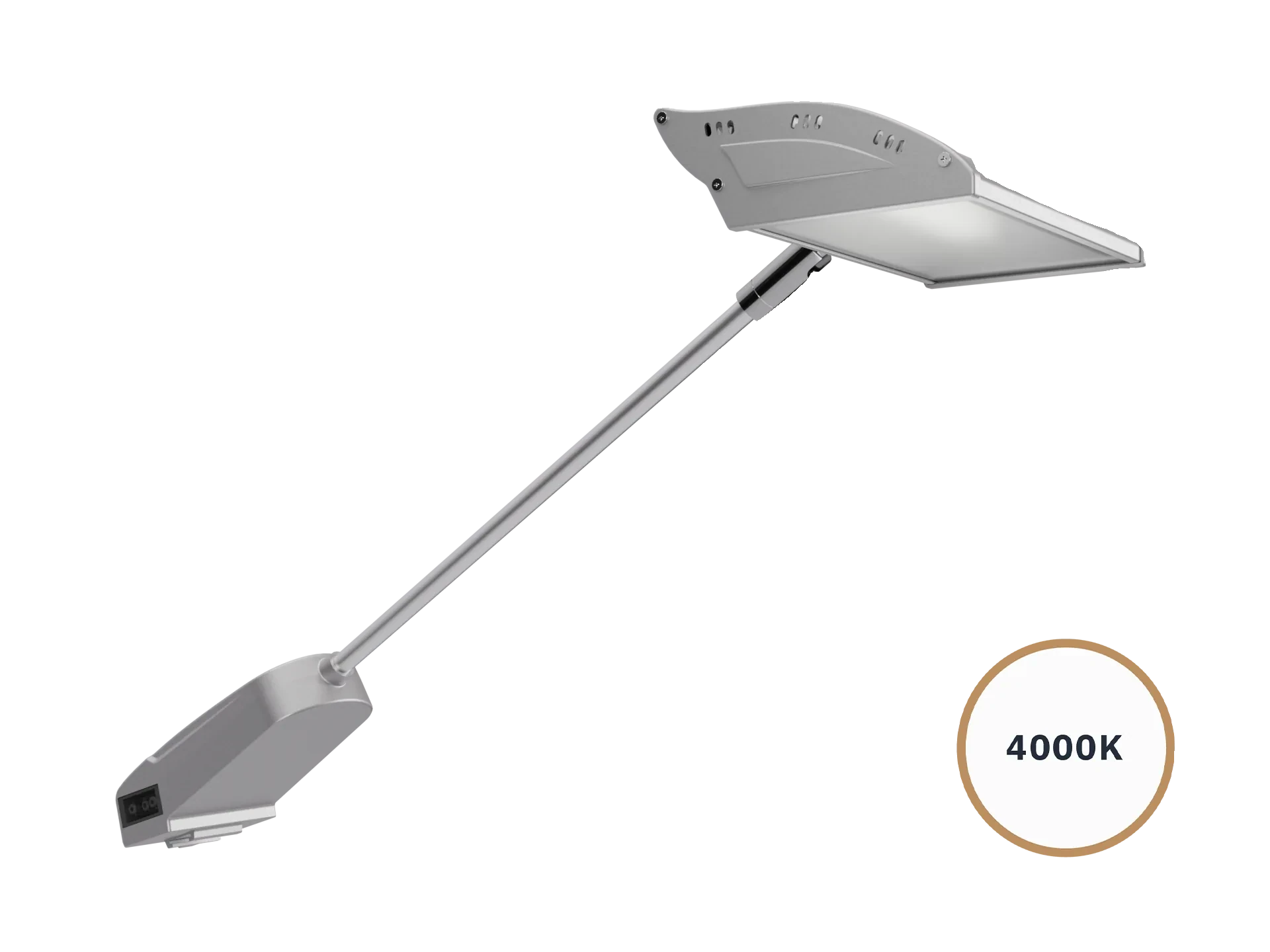

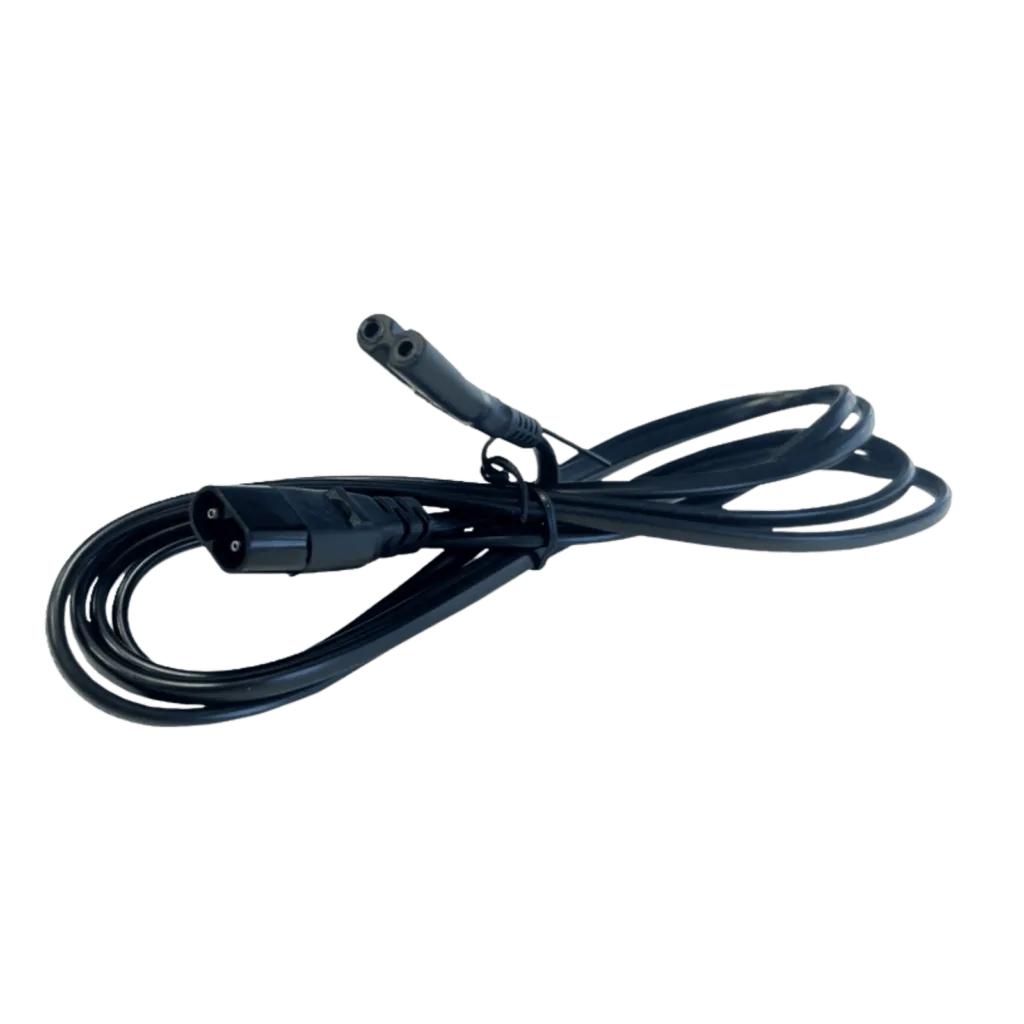

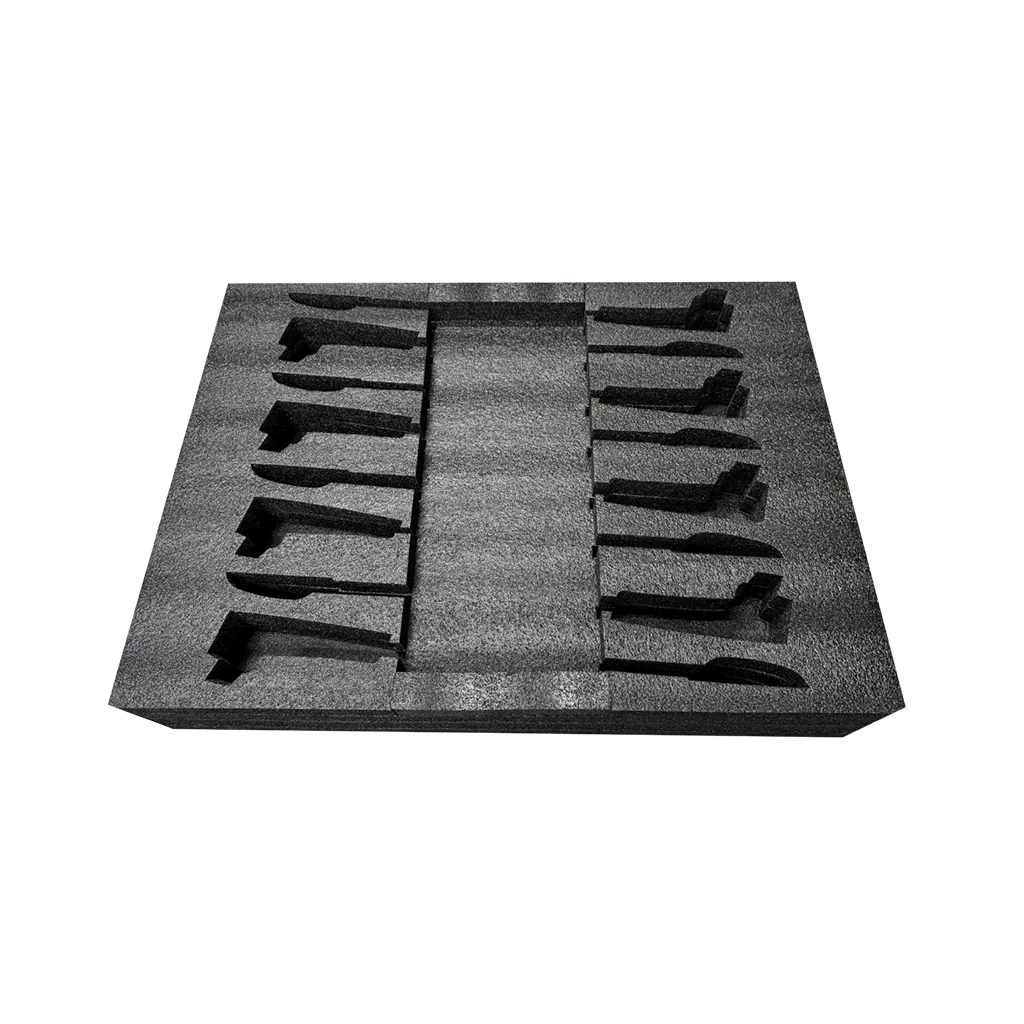

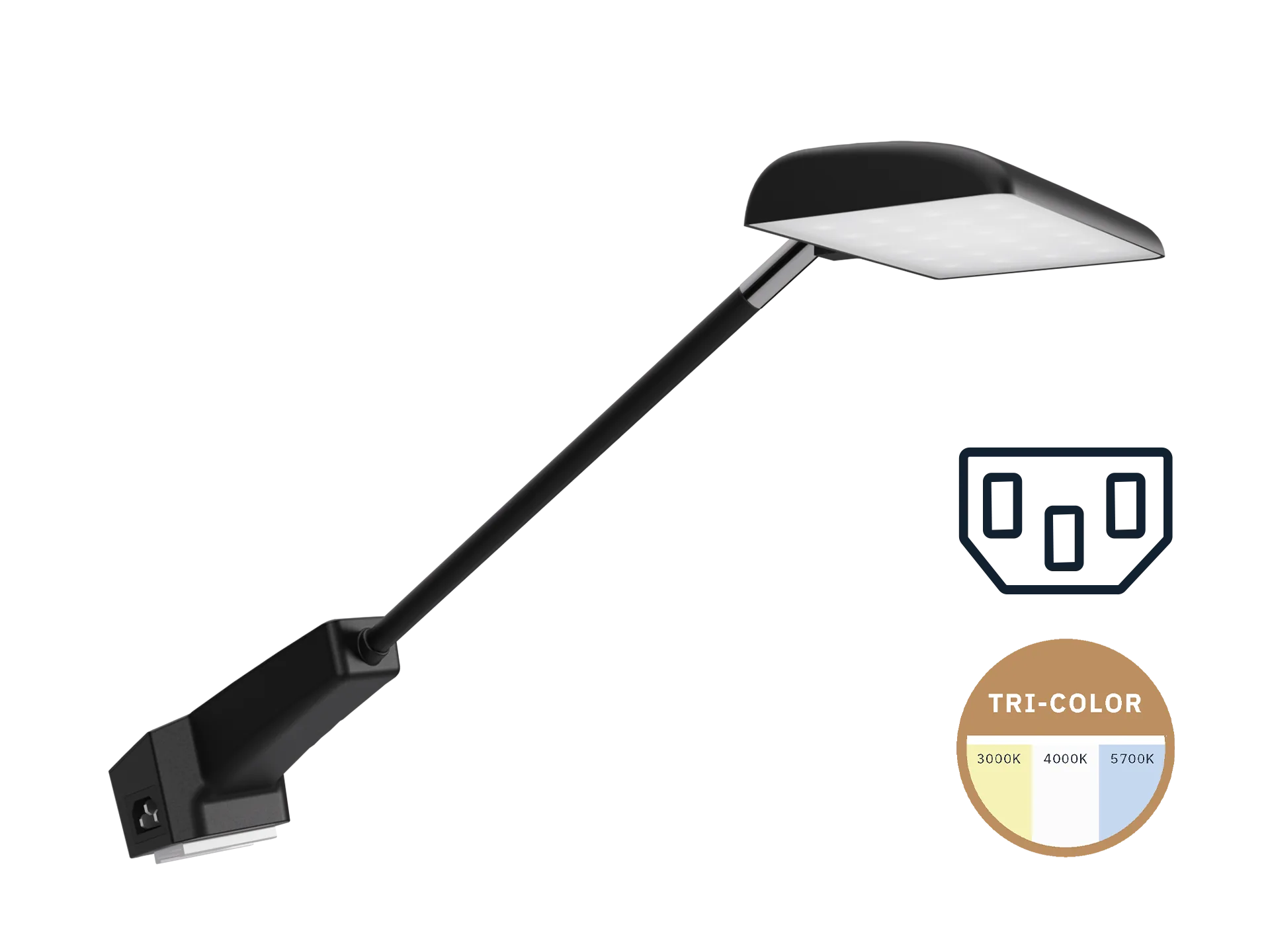

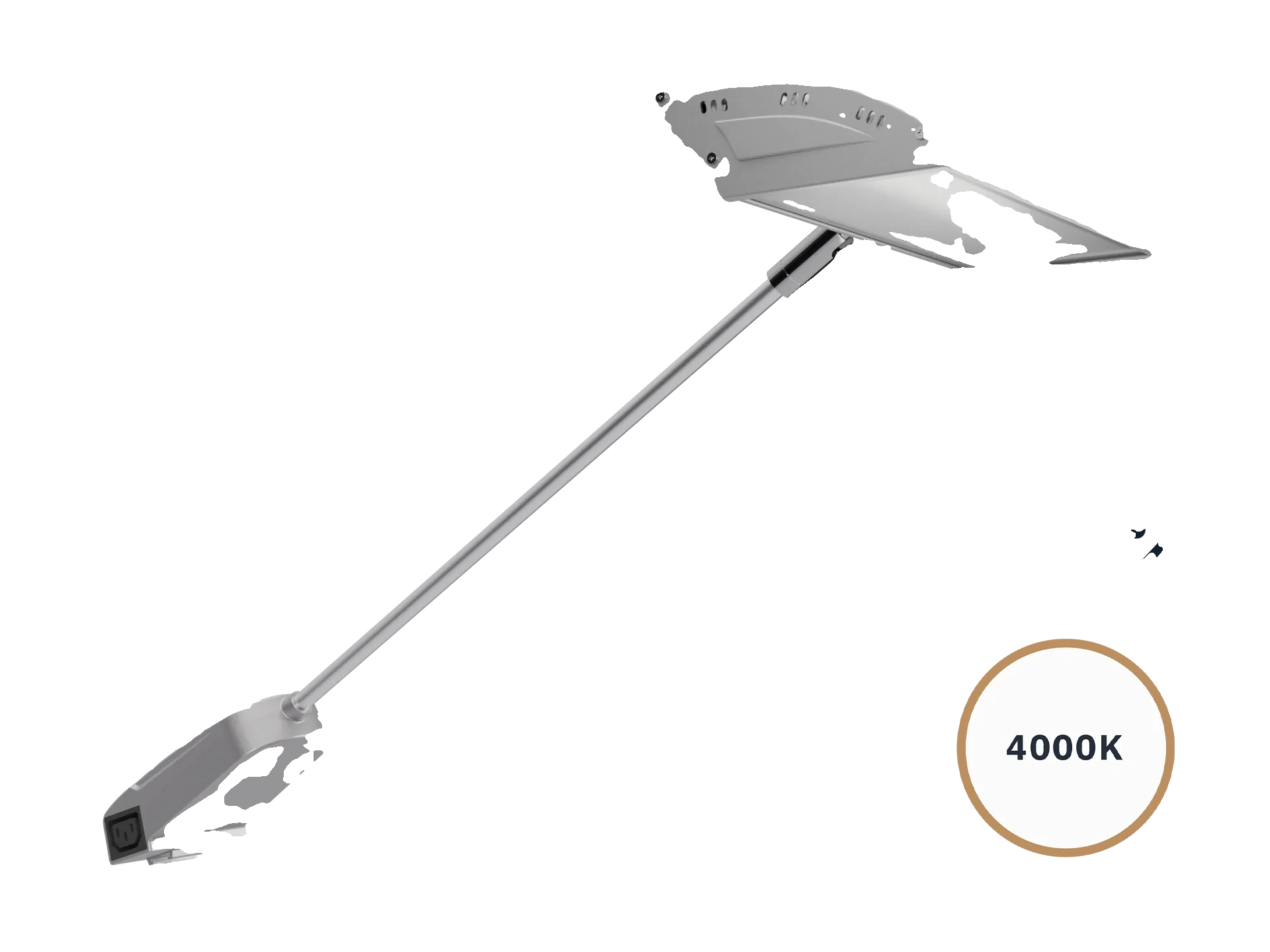

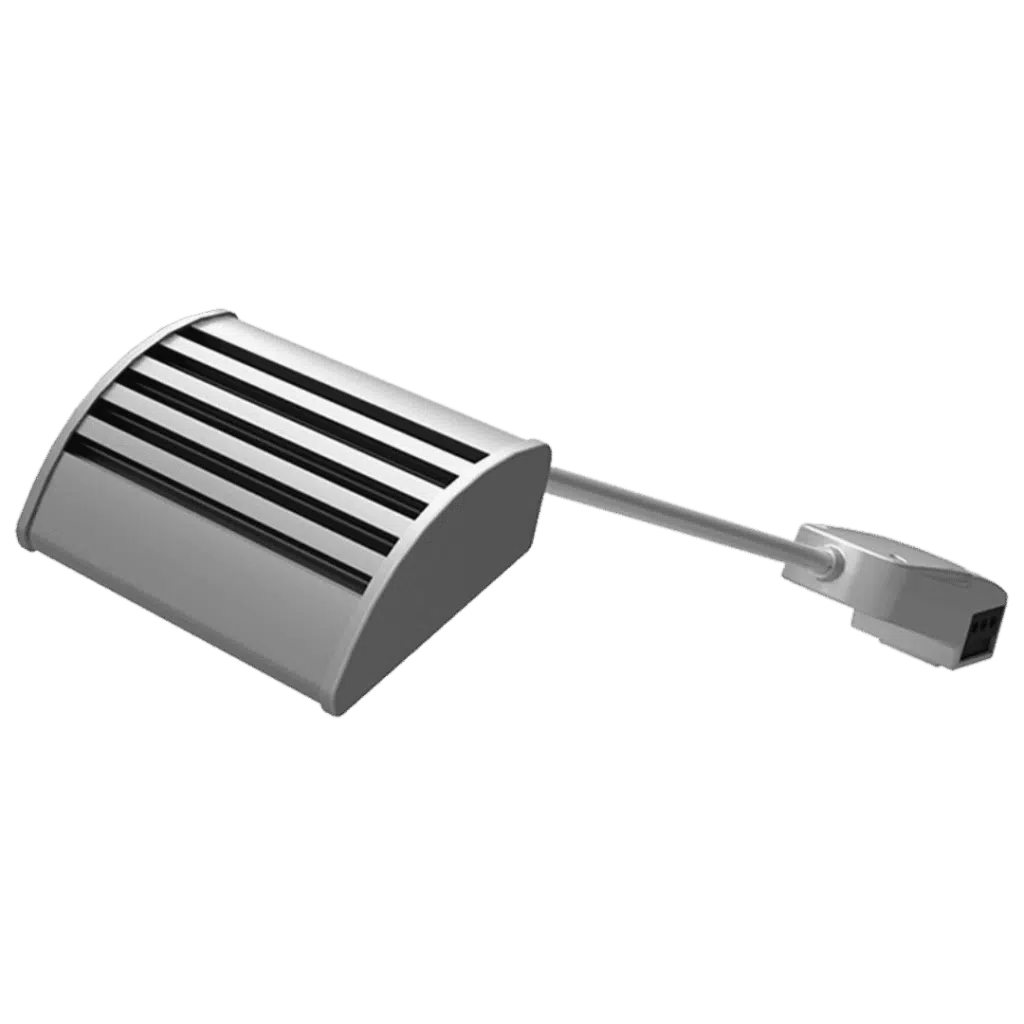

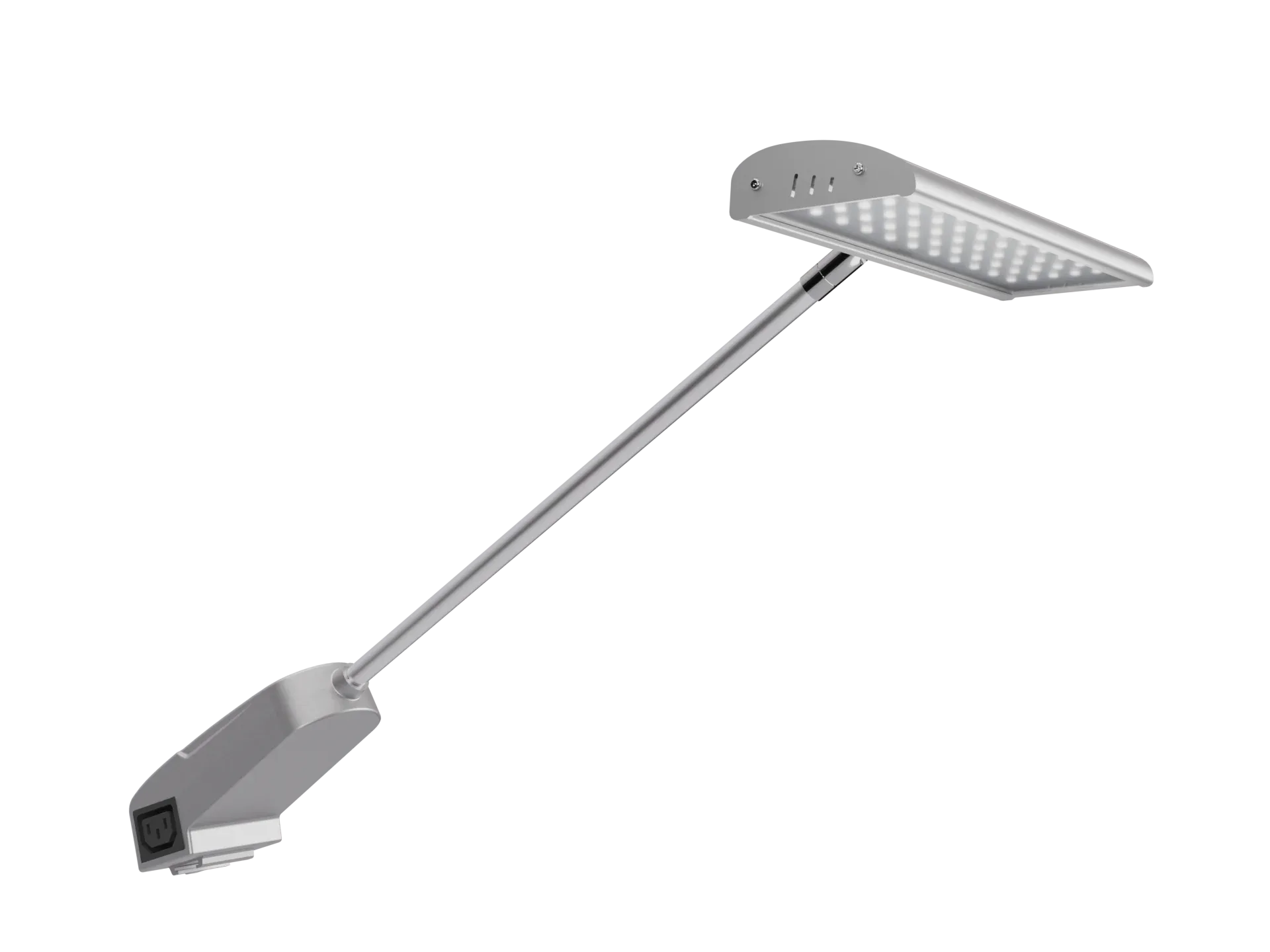

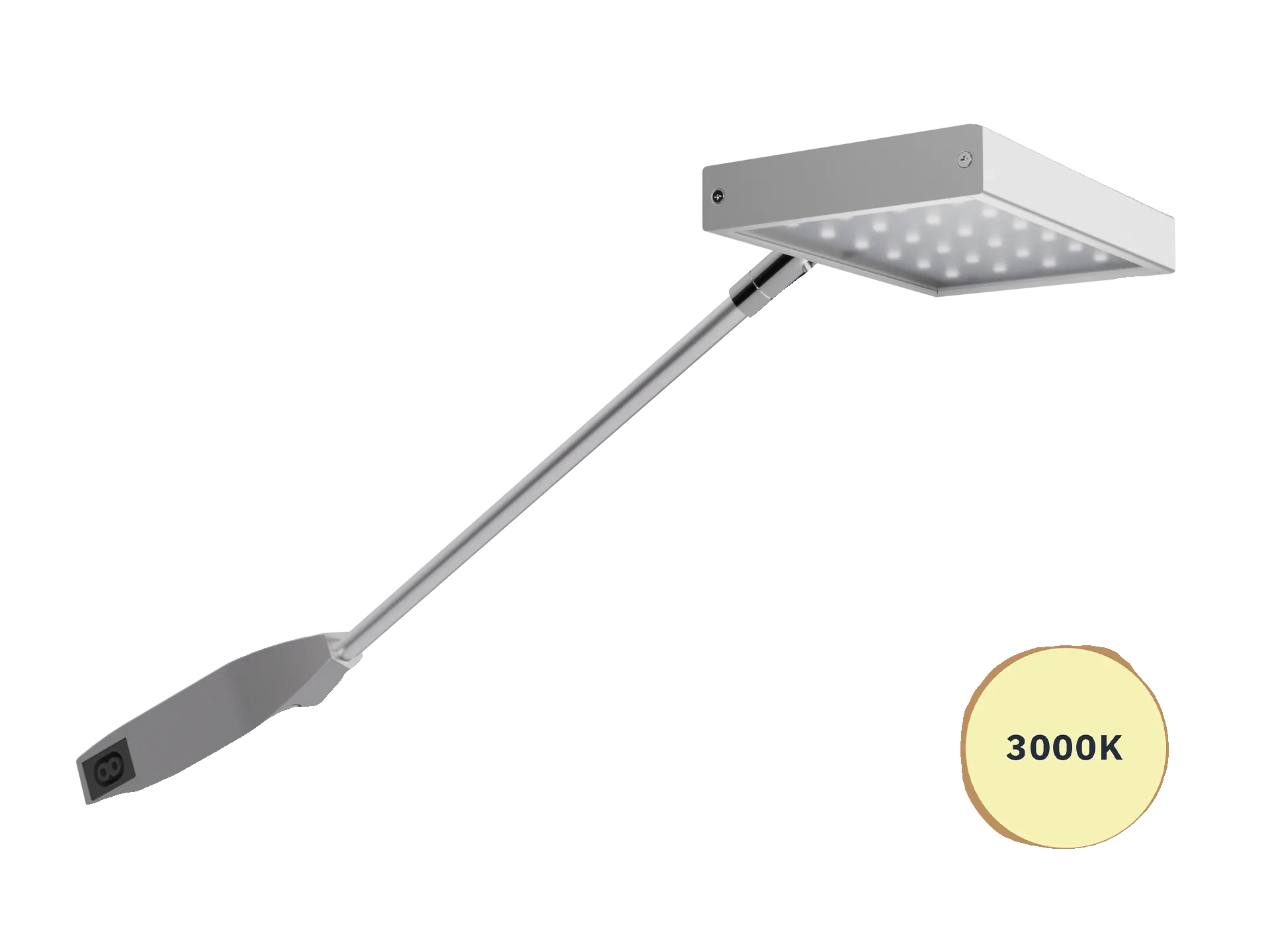

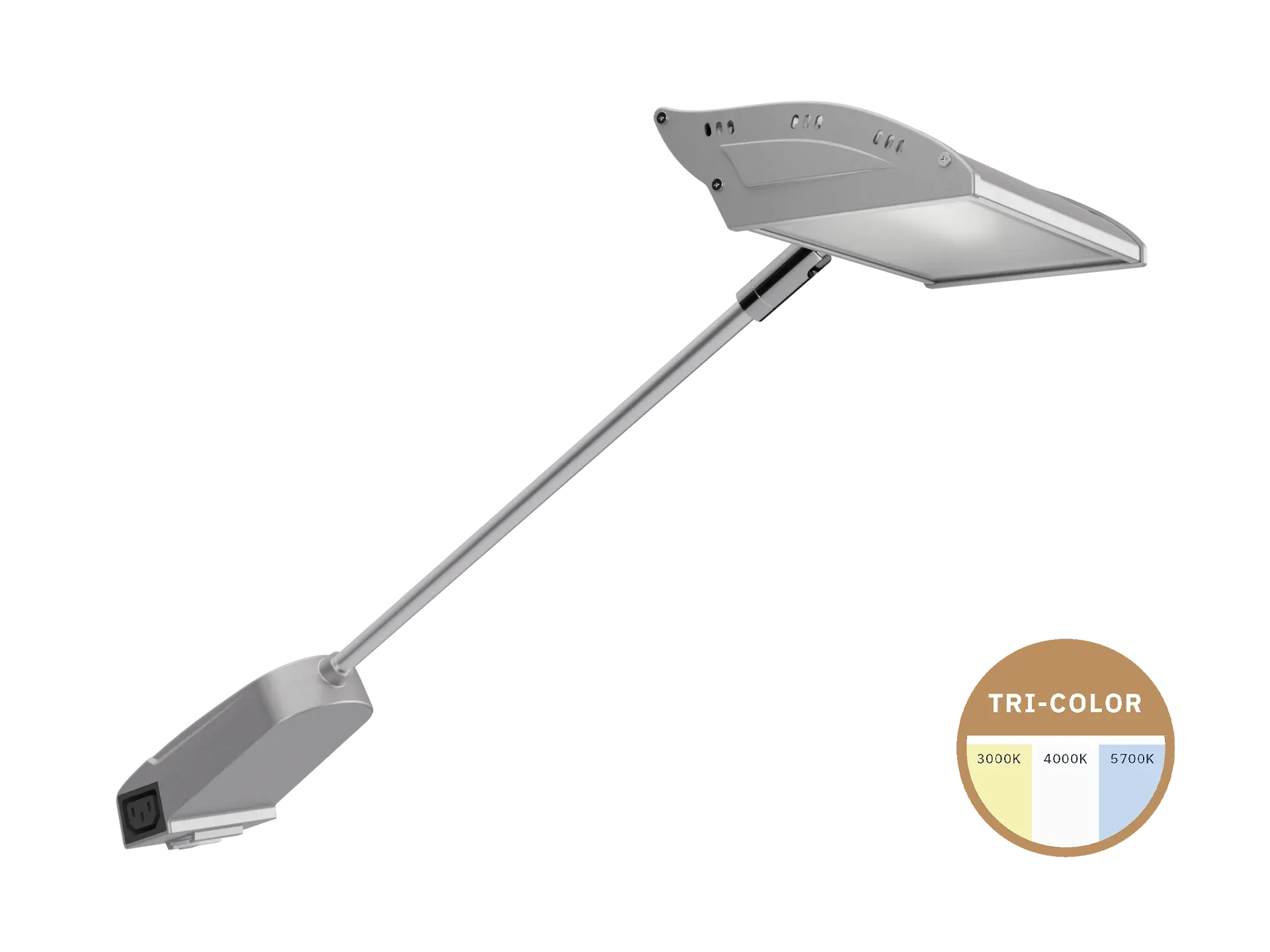

 CYRA 20 |  LUMI 30 |  LUMI 30 Pro |  NOVI 50 |  NOVI 70 |  SOLA 30 |  META 25 |  NOVI 50 Pro |  LIFA 40 |  LIFA 150 |  ZORO 50 |  Connection cable C14 - C13 |  Connection cable Wieland GST18 (male + female) |  Connection Cable C8/C7 150 cm |  Transport box for 8x display spots |  Transport box for 8x SOLA 30 |  Foam transport box for 8x SOLA 30 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Moč | 20 W | 30 W | 50 W | 20 / 25 / 30 W (nastavljivo) | |||||||||||||
| Svetlobni tok | 2000 lm / 2300 lm / 2350 lm (do 2.350 lm) | do 3200 lm | do 3.550 lm (3300 / 3500 / 3700 lm) | 4500 lm / 4750 lm / 5000 lm | 8.300 lm / 8.700 lm | do 4140 lm (pri 30 W) | |||||||||||
| Vir svetlobe | LED (čip Lumileds) | SMD, 80 LED (cip Lumileds) | |||||||||||||||
| Število LED | 24 | 36 | |||||||||||||||
| Tip LED | SMD | SMD (čip Lumileds) | |||||||||||||||
| Barvna temperatura | 3000 K (topla bela) / 4000 K (nevtralna bela) / 5700 K (hladna bela) | topla bela 3000 K / nevtralna bela 4000 K / hladna bela 5700 K | topla bela 3000 K / nevtralna bela 4000 K / hladna bela 5700 K | 4000 K (nevtralno bela) / 5700 K (hladno bela) | 3000 K / 4000 K / 5700 K (Tri-Color stikalo) | ||||||||||||
| CRI | 83 | 83 | 83 | 83 | |||||||||||||
| Kot snopa | 100° | 90° | |||||||||||||||
| Reflektor / leča | simetrična | asimetrična | |||||||||||||||
| Življenjska doba | 30.000 ur | 30000 h | 30000 ur | ||||||||||||||
| Vhodna napetost | AC 100–240 V | AC 100-240 V | AC 100-240 V | AC 100-240 V | AC 100-240 V | ||||||||||||
| Vhodna moč | DC 52 V, 0,39 A | DC 30-36 V, 0,9 A | DC 30-36 V, 1,5 A | ||||||||||||||
| Dolžina roke | 260 mm | 369 mm | 369 mm | ||||||||||||||
| Dimenzije glave | 90 x 153 x 20 mm | 121 x 163 x 47 mm | 150 x 264 x 57 mm | ||||||||||||||
| Skupne dimenzije | 510 x 153 x 45 mm | 610 x 163 x 55 mm | 610 x 163 x 55 mm | 480 x 75 x 24 mm | 760 x 264 x 57 mm | ||||||||||||
| Bruto teža | 570 g | 1250 g / 1400 g | |||||||||||||||
| Material | aluminij | aluminij (siva barva) | Aluminum | Aluminum | Aluminum | Aluminum | ABS | ||||||||||
| Vrtenje / nagib | vrtljivo; nagib 90° | vrtljiv; kot nagiba 90° | |||||||||||||||
| Razred električne zaščite | 1 | 1 | |||||||||||||||
| Energijski razred | A+ | A+ | E | A+ | |||||||||||||
| Delovna temperatura | -5 °C do +40 °C | -5 °C do +40 °C | |||||||||||||||
| Temperatura skladiščenja | -5 °C do +40 °C | -5 °C do +40 °C | |||||||||||||||
| Certifikati | CE, TÜV, GS | CE, TÜV, GS | CE, TUV, GS | CE, TÜV, GS | CE, TUV, GS | CE, RoHS | |||||||||||
| SKU | LAC-020-G3B | LAL-030-G346B | LAB-8S | ||||||||||||||
| Dimenzija glave | 121 x 163 x 47 mm | 150 x 194 x 57 mm | |||||||||||||||
| Dimenzija osnove | 166 x 66 x 55 mm | 170 x 84 x 52 mm | |||||||||||||||
| Moc | 30 W | 70 W | |||||||||||||||
| Vhodna moc | DC 30-36 V, 0,9 A | DC 54 V, 1,3 A | |||||||||||||||
| Stevilo preklopnih ciklov | 15000 | 15.000 | |||||||||||||||
| Dimenzije podnozja | 166 x 66 x 55 mm | 170 x 84 x 52 mm | |||||||||||||||
| Dolzina roke | 369 mm | 469 mm | |||||||||||||||
| Bruto teza | 1200 g / 950 g | 2.050 g | |||||||||||||||
| Adapter | vgrajen IEC C14 vhod + IEC C13 izhod; vgrajen Wieland GST18 (M + Ž) | Built-in IEC C14 input + IEC C13 output, Built-in Wieland GST18 (Male + Female) | Built-in IEC C14 input + IEC C13 output, Built-in Wieland GST18 (Male + Female) | Built-in IEC C14 input + IEC C13 output, Built-in Wieland GST18 (Male + Female) | Built-in IEC C14 input + IEC C13 output, Built-in Wieland GST18 (Male + Female) | Built-in IEC C14 input + IEC C13 output, Built-in Wieland GST18 (Male + Female) | |||||||||||
| Power | 25 W | 50W | 30W, 35W, 40W | 100W, 125W, 150W | 50 W | ||||||||||||
| Light output | 2300 lm, 2400 lm | 5200 lm, 5600 lm, 5700 lm | 5600 lm | 19000 lm | |||||||||||||
| Color temperature | Cool white (5700 K), Neutral white (4000 K), Warm white (3000 K) | Cool white (5700K), Neutral white (4000K), Warm white (3000K) | Tri-color (3000K + 4000K + 5700K) | Tri-color (3000K + 4000K + 5700K) | Tri-color (3000K + 4000K + 5700K) | ||||||||||||
| Energy consumption | 25 W | 50W | 30W, 35W, 40W | 100W, 125W, 150W | 50 W | ||||||||||||
| Energy label | A+ | A+ | C | ||||||||||||||
| Input Voltage | AC 100-240V | AC 100-240V | AC 100-240V | AC 100-240V | AC 100-277V | ||||||||||||
| Input power | DC 27-35V 0,65A | DC 30-36V 1,5A | |||||||||||||||
| Light source | LED | LED | |||||||||||||||
| LED chip | Everlight | Lumileds | |||||||||||||||
| LED type | SMD | SMD | SMD | SMD | SMD | ||||||||||||
| Number of LEDs | 50 | 120 | |||||||||||||||
| Reflector / Lens | Symmetric | Symmetric | |||||||||||||||
| Beam angle | 100° | 90° | 110 | 110° | 120° | ||||||||||||
| Tilt angle | 90° | 90 | |||||||||||||||
| Rotating and tilting | Rotating and tilting | Rotating | |||||||||||||||
| Lamp lifetime | 30000 hrs | 30000 hrs | 40000 hrs | 40000 hrs | 50000 hrs | ||||||||||||
| Number switching cycles | 15000 | 15000 | |||||||||||||||
| Linkable | Single or Serial connection | Single or Serial connection | 25 | 7 | IEC 40, Wieland 60 | ||||||||||||
| Linkable (max units) | 24 (220V) | 20 | |||||||||||||||
| Electr. safety class | 1 | 1 | |||||||||||||||
| IP-code | IP20 | IP20 | IP20 | IP20 | IP20 | ||||||||||||
| Certificates | CE, TÜV, GS | CE, TÜV, GS | CE, RoHS | CE, RoHS | CE, RoHS | ||||||||||||
| Clips available | Aluvision, beMatrix, Octanorm, Syma, Modul, Panel, Truss | Aluvision, beMatrix, Octanorm, Syma, Modul, Panel, Truss | |||||||||||||||
| Arm length | 356 mm | 369 mm | 180 mm | 283.6 mm | 132 mm | ||||||||||||
| Dimension head | 75 x 234 x 25 mm | 150 x 194 x 57 mm | |||||||||||||||
| Dimension base | 166 x 66 x 55 mm | 170 x 84 x 52 mm | |||||||||||||||
| Total dimensions | 610 x 235 x 52 mm | 600 x 407 x 58 mm | 800 x 600 x 220 mm | 760 x 550 x 130 mm | 760 x 550 x 130 mm | ||||||||||||
| Gross weight | 1359 g | 1250 g, 1400 g | 200 g | 6000 g | 900 g | 900 g | |||||||||||
| Storage temperature | -5 °C to +40 °C | -5°C - +40°C | |||||||||||||||
| Connectors | IEC C14 (plug) - C13 (socket) | male + female | C7 and C8 | ||||||||||||||
| Available lengths | 150 cm, 200 cm, 300 cm | 150 cm, 200 cm, 300 cm | |||||||||||||||
| Best suited for | CYRA 20 | LUMI 30, NOVI 50 | SOLA 30 | SOLA 30 | |||||||||||||
| Capacity | 8 display spots | 8x SOLA 30 display spots |
