lightbox modules spotlights for trade fairs

family products

overview

Indispensable lighting fixtures for spaces, products and events: floodlights, track lights, display spots, PAR lights and downlights.

gallery

family compare

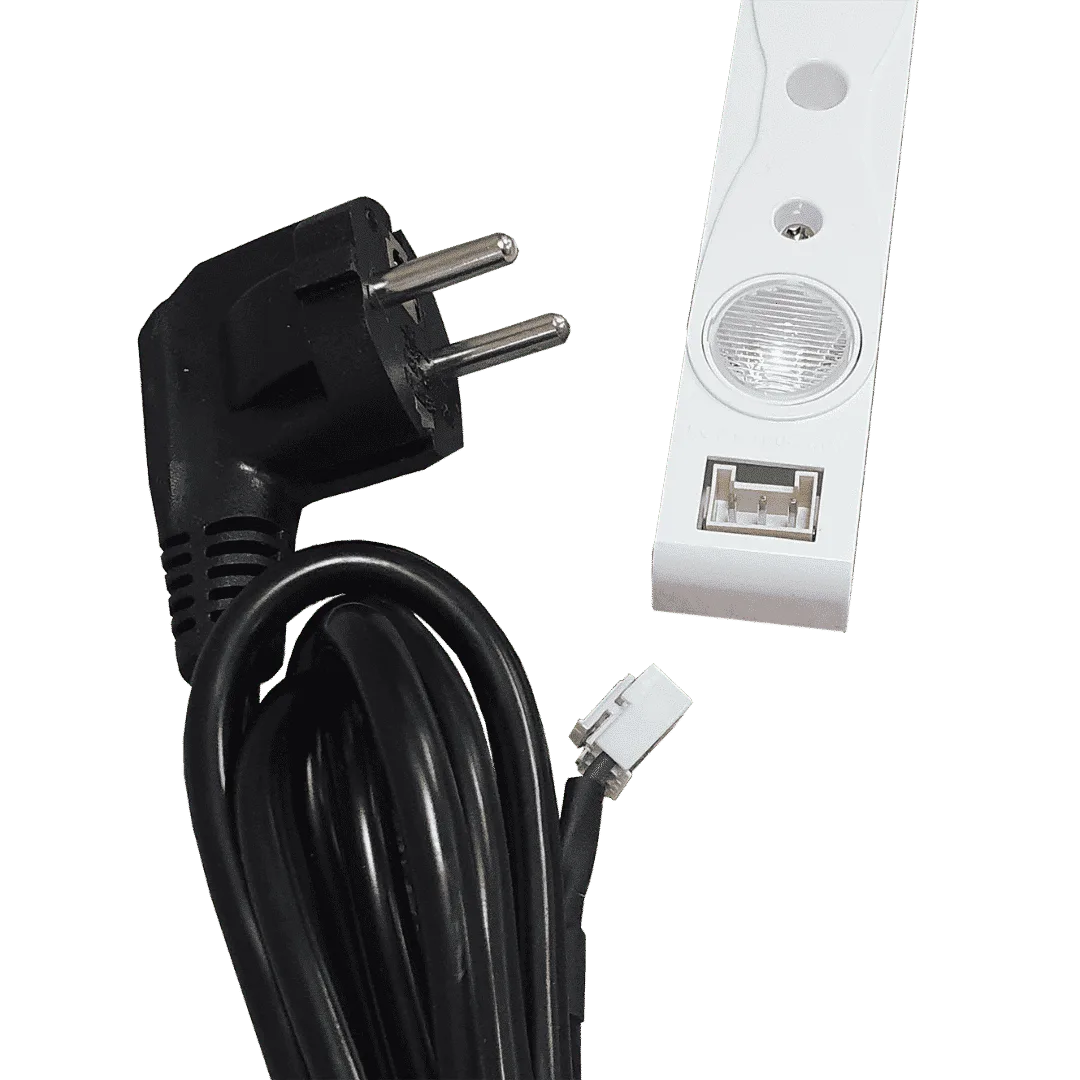

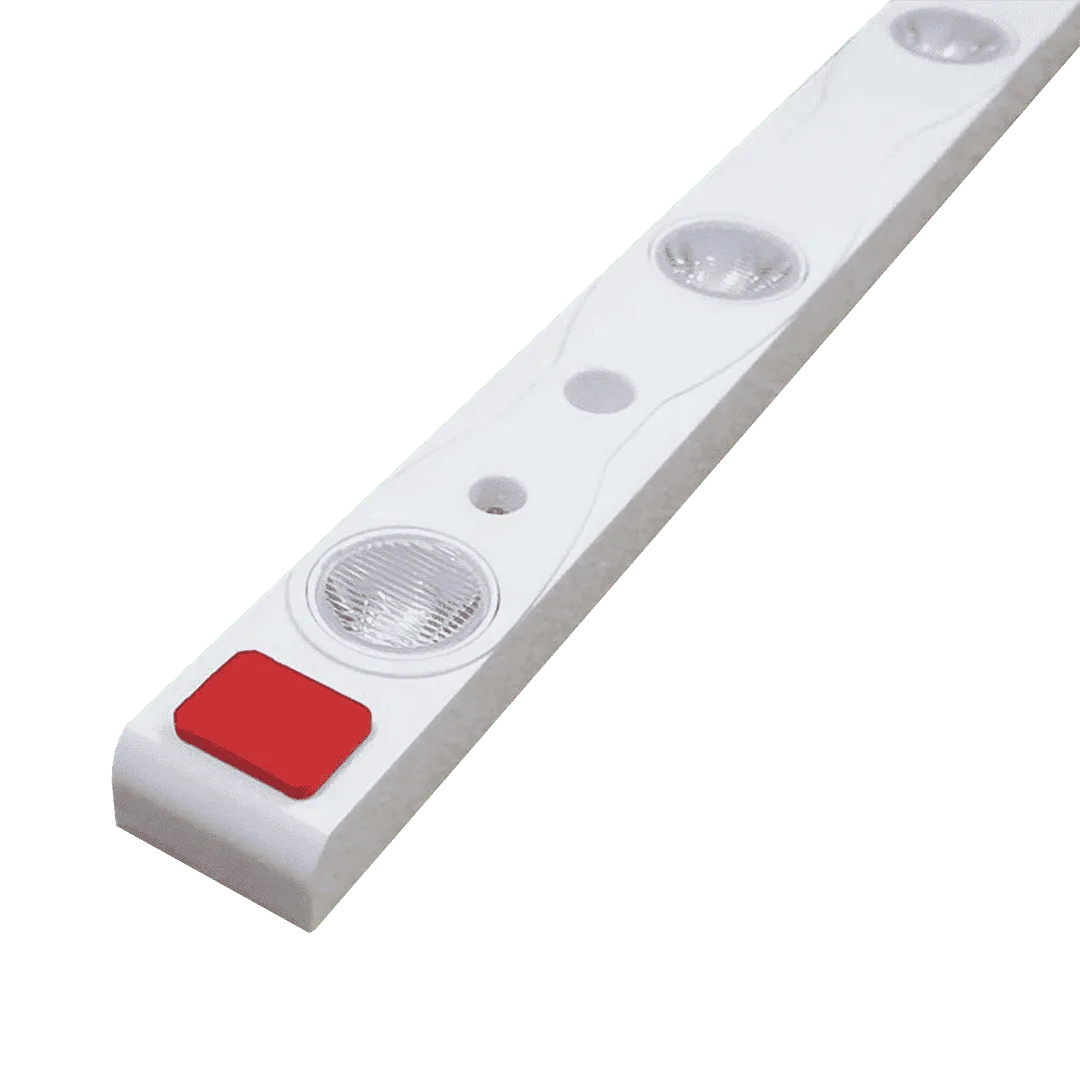

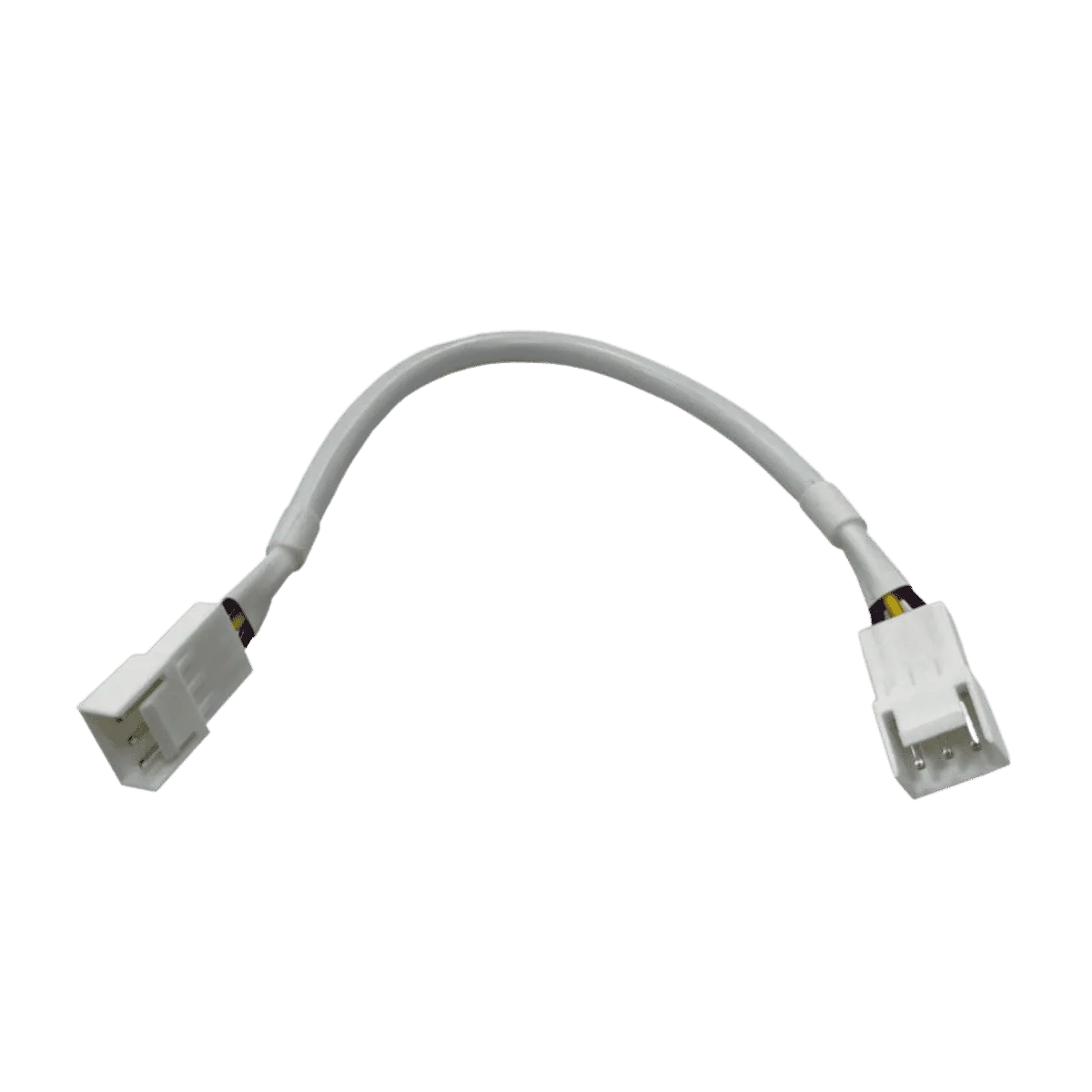

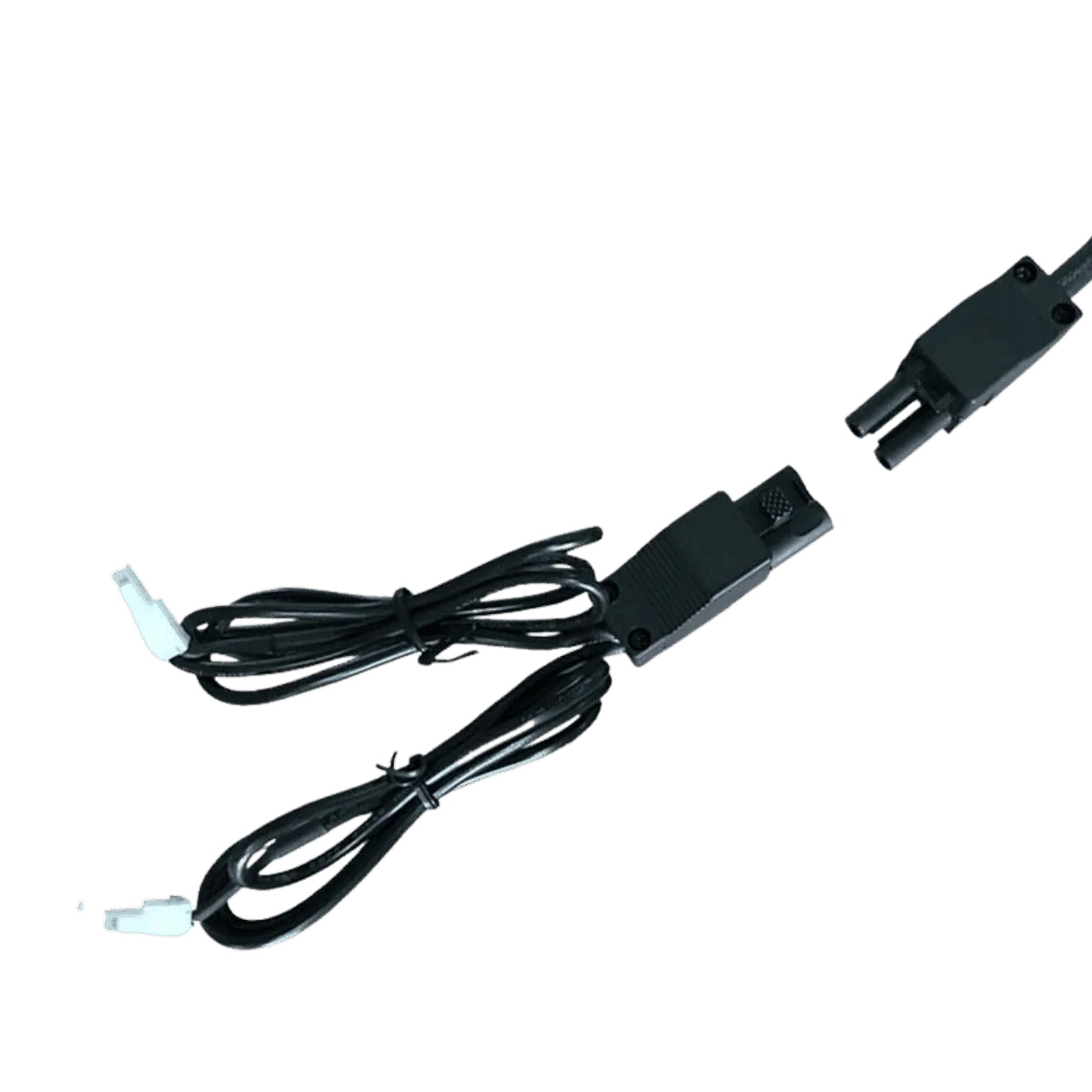

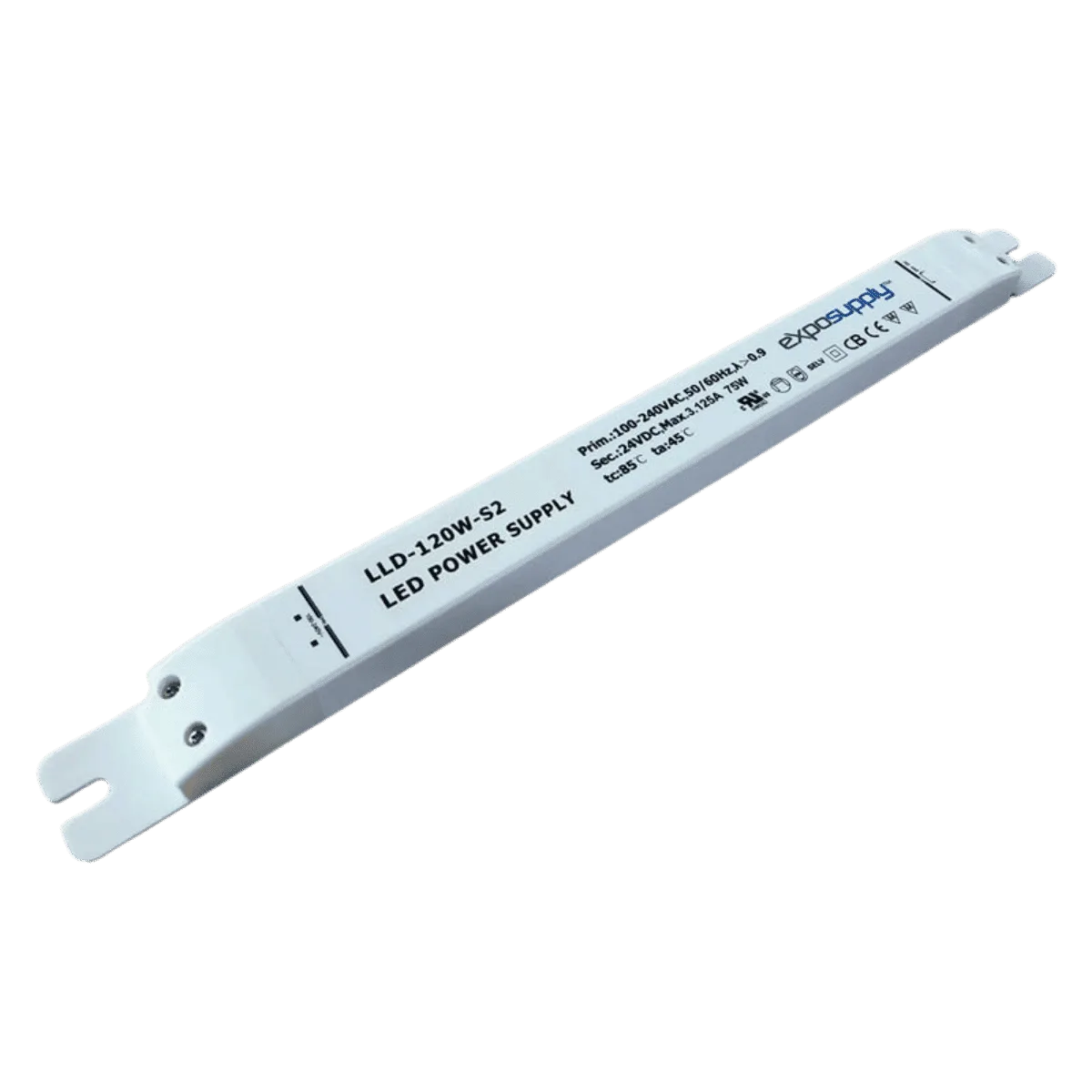

	Connection cable LONA	LONA Edgelit module	VICI Edgelit module - 2 pin	Connection cable Lightbox 24V	YONI Backlit module	Extension cord LONA for Connection cable 24 cm	Power cable LONA EU socket	Driver connection cable duo 24V	Driver LED Lightbox Meanwell 240W 24V	Driver LED Lightbox Slim 120W 24V	Driver LED Lightbox Slim 75W 24V	End plug LONA	UVAL Edgelit module - 3 pin
Total dimensions	100 mm, 1000 mm, 2000 mm, 240 mm, 600 mm	393 x 26 x 14 mm	190 x 23 x 18 mm, 380 x 23 x 18 mm, 380 x 23 x 18 mm, 570 x 23 x 18 mm		480 x 20 x 7,2 mm, 960 x 20 x 7,2 mm	240 mm	2000 mm		244 x 68 x 39 mm	305 x 30 x 18 mm	305 x 30 x 18 mm
Best suited for	LONA					LONA	LONA	UVAL, VICI, YONI				LONA
Maximum reach		3000 mm	4000 mm		80 mm
Mounting		Edgelit	Edgelit		Backlit								onto the aluminium frame of the lightbox
Linkable		Max. 20	Max. 8		4
Beam angle		45x10	39x13		170°								45 x 15°
Driver		Integrated	Extern		External
Light output		1450 lm	1800 lm, 2700 lm, 900 lm		1200 lm, 600 lm								1350 lm
Depth of light box		100 - 150 mm	100 - 150 mm		Max. 50 mm
Energy consumption		15W	18W, 27W, 9W		12W, 6W				240W
Input Voltage		AC 100-240V	DC 24V		DC 24V				DC 24V	DC 24V	DC 24V
Certificates		CE, RoHS, UL	CE		CE, RoHS, UL, TÜV
Storage temperature		-20oC - +40oC	-20oC - +40oC		-20oC - +40oC				-20°C - +40°C
Working temperature		-20 ºC - +60 ºC			-20 ºC - +60 ºC
CRI		>75	>75		>75
IP-code		IP20	IP20		IP20				IP67	IP20	IP20
LED chip		SMD3535	Osram		SMD2835
Number of LEDs		5	3, 6, 9		12
LED type		SMD	SMD		SMD
Lamp lifetime		30000 hrs	50000 hrs		30000 hrs
Light source		LED	LED		LED
Power		18W	18W, 27W, 9W		12W, 6W					120W	75W
Color temperature		Cool white (7000k)	Cool white (6500k)		Cool white (7000k)
Material		LED, PCBA, Plastic	Aluminum		Aluminum
Color		White	Grey		Grey
Weight		115 g	111 g, 39 g, 90 g		43 g, 73 g
Coupling plug			2-pin					2-pin, 3-pin
Dimmable			No		Yes
Connector				2-pin / 3-pin									3 pin, Pixlip-compatible

also see

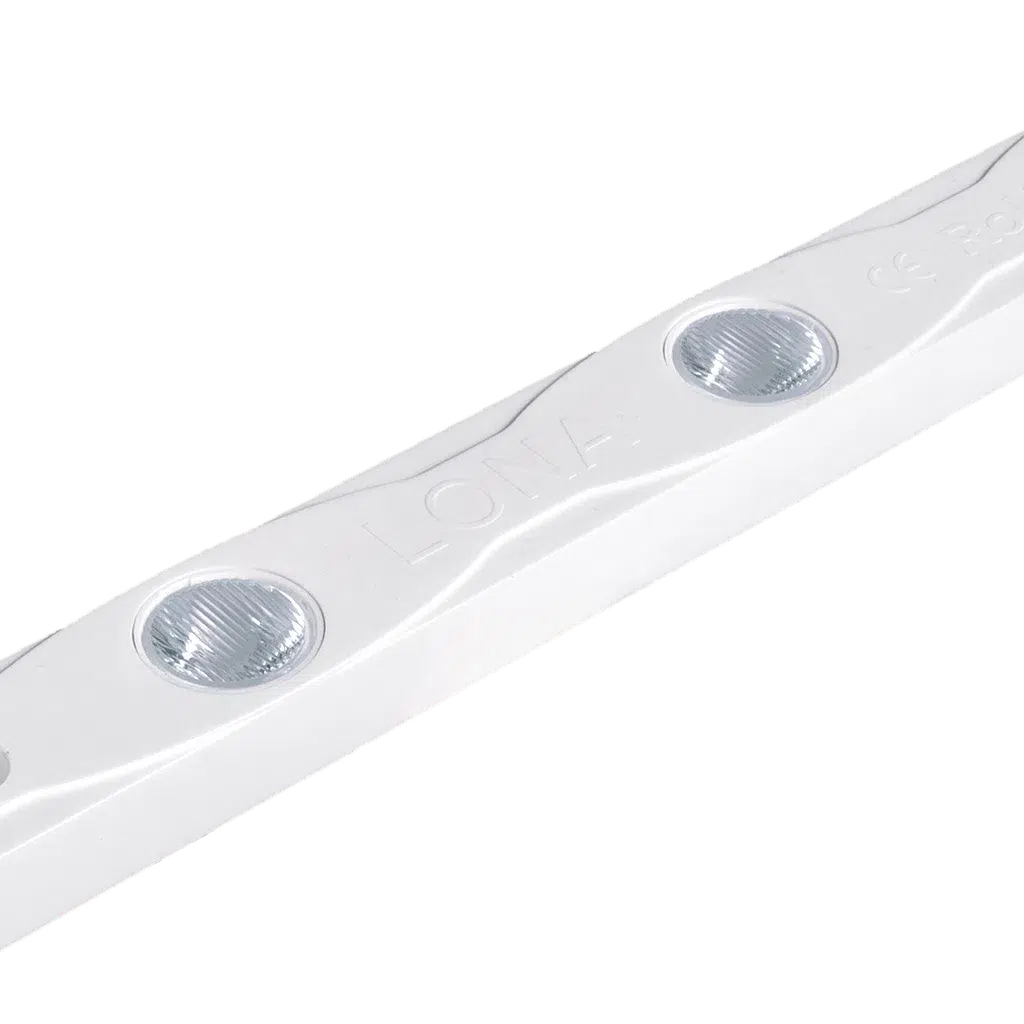

LONA Edgelit moduleThe LONA Edgelit module is a powerful LED light source with an integrated driver and 1450 lm light output, designed to illuminate lightboxes.

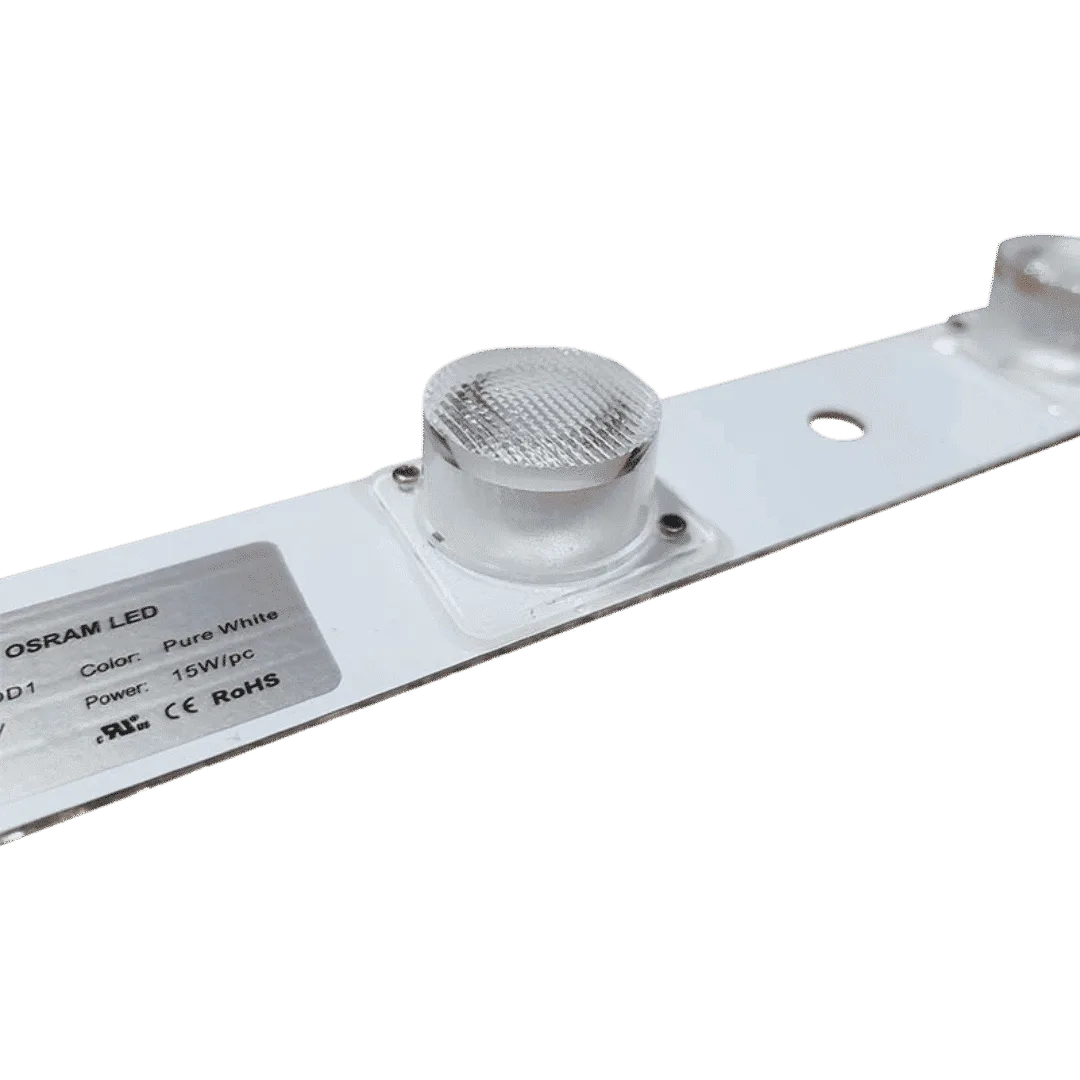

UVAL Edgelit module - 3 pinThe UVAL Edgelit module - 3 pin is an edge-lit LED module for lightboxes, with five 3 W LEDs and a light output of 1350 lm.

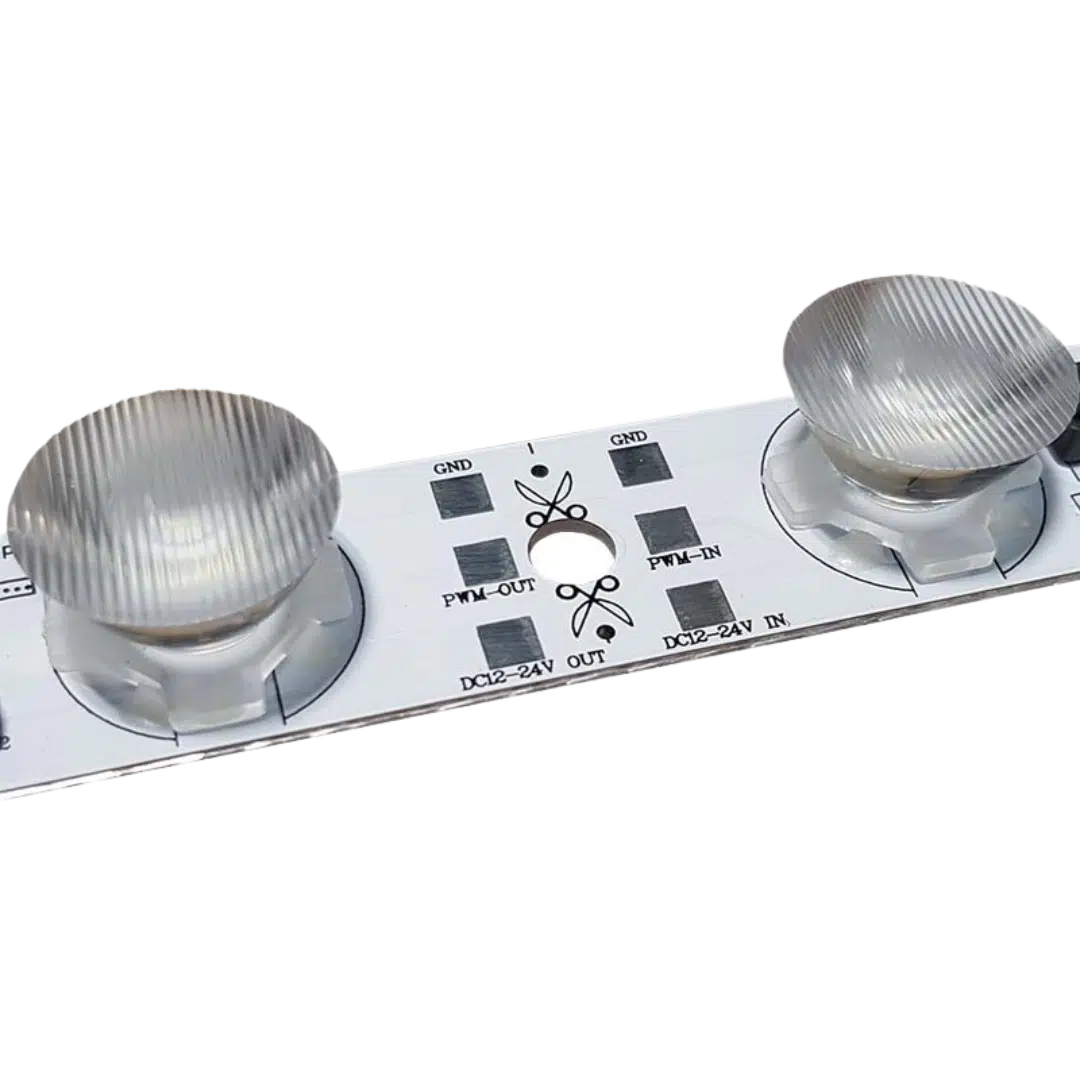

VICI Edgelit module - 2 pinVICI is an edgelit LED module for lightbox applications with a 2-pin connector, delivering up to 2700 lm in cool white 6500 K thanks to nine 3 W Osram LEDs.

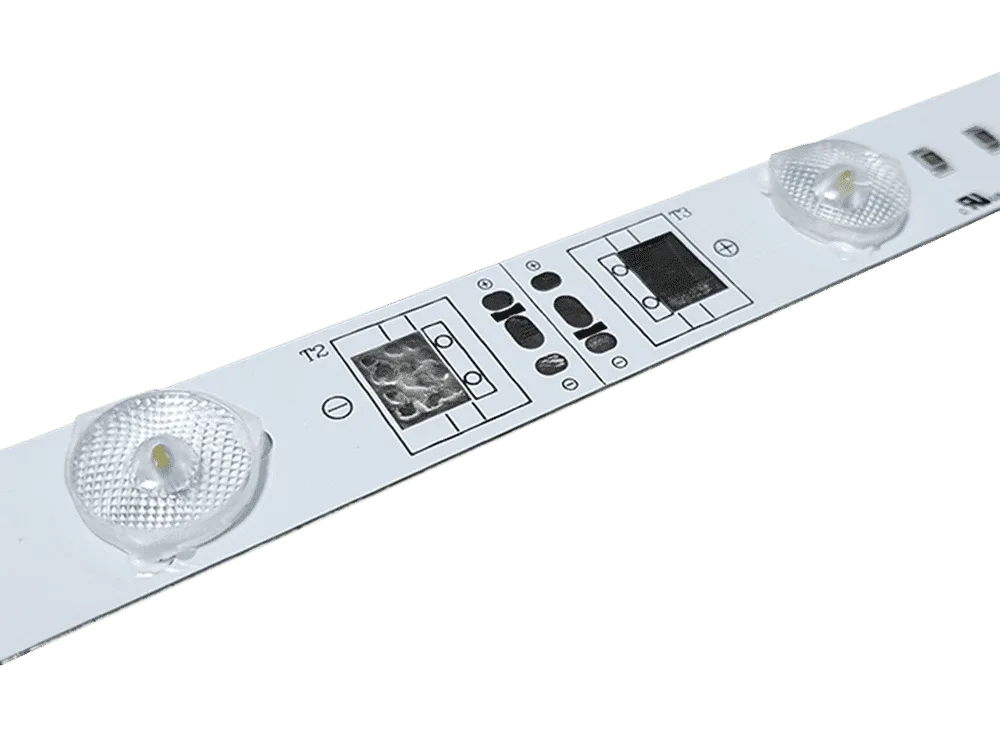

YONI Backlit moduleYONI is a backlit module for shallow lightboxes with a light output of 1200 lm and a wide 170° beam angle, evenly illuminating the entire panel surface.
CYRA 20CYRA 20 Display spot- Modern and stylish lighting for your exhibition wall The CYRA 20 is a sleek, modern and stylish lighting solution, specially des
Display spot clipsMounting clips to attach display spots to every stand system: Octanorm, Aluvision, beMatrix, Syma, Modul, Panel and Truss, plus timber constructions and pop-up walls.
display spotsDisplay spots with clips for every stand-build system. Powerful, versatile lighting for graphics and panels.
downlightsRecessed downlights for even illumination of the whole booth. Slim build, soft diffused light.

Specifications, lead time, regional availability.
