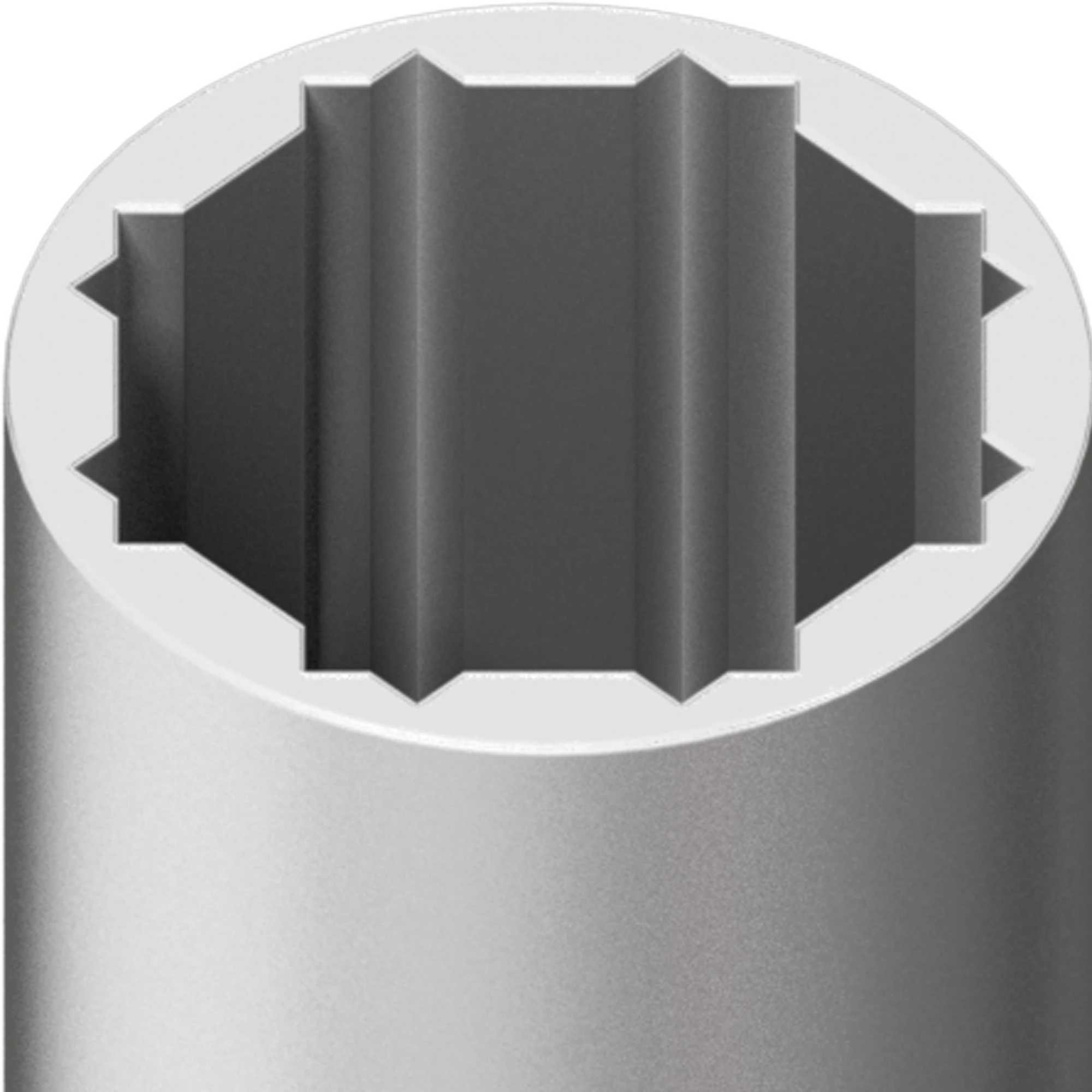

M 1208.85Round extrusionfor bracingL 5000 × W 26.3 × H 26.3 mm
tension fabric extrusions for trade fairs
Tension fabric. Seamless look.
Tension fabric profiles are aluminium extrusions into which you tension printed fabric using a silicone keder, with no visible frame or seams. The system covers single-sided and double-sided tensioning, illuminated light walls, corner and cube solutions, as well as wall and timber fixings. With a set of base profiles, corner pieces, connectors and accessories you can build both flat walls and fully enclosed light cubes.
Technical data
- Material
- extruded aluminium
- Graphic fixing
- silicone edge (keder)
- Standard profile length
- 6000 mm (individual 5000 mm / 5060 mm)
- System groove
- 4.3 mm; depth 7 mm
Basic parts
48

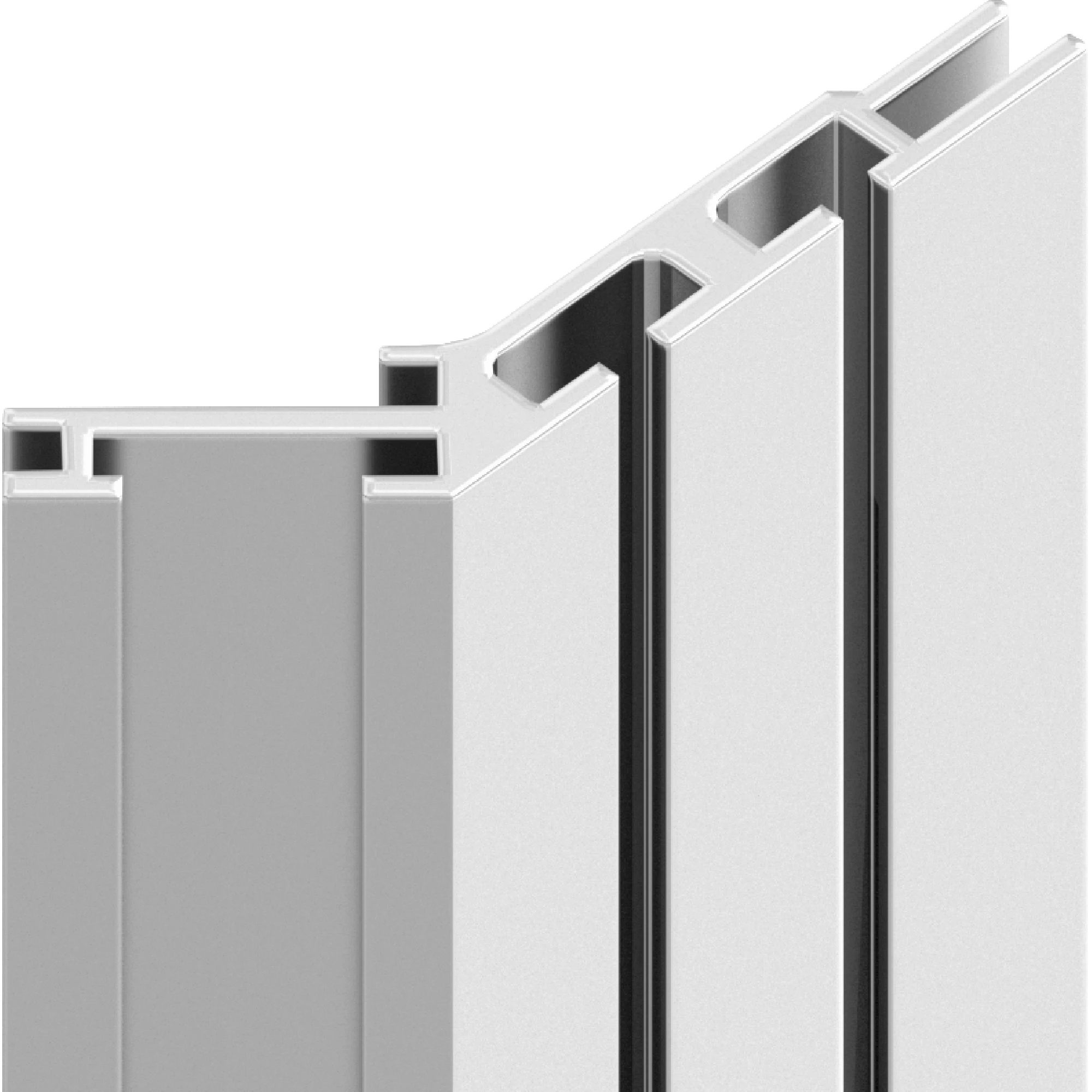

M 1301.01Tension fabric extr.for single-sided illumination135° angleL 6000 × W 72 × H 47 mm

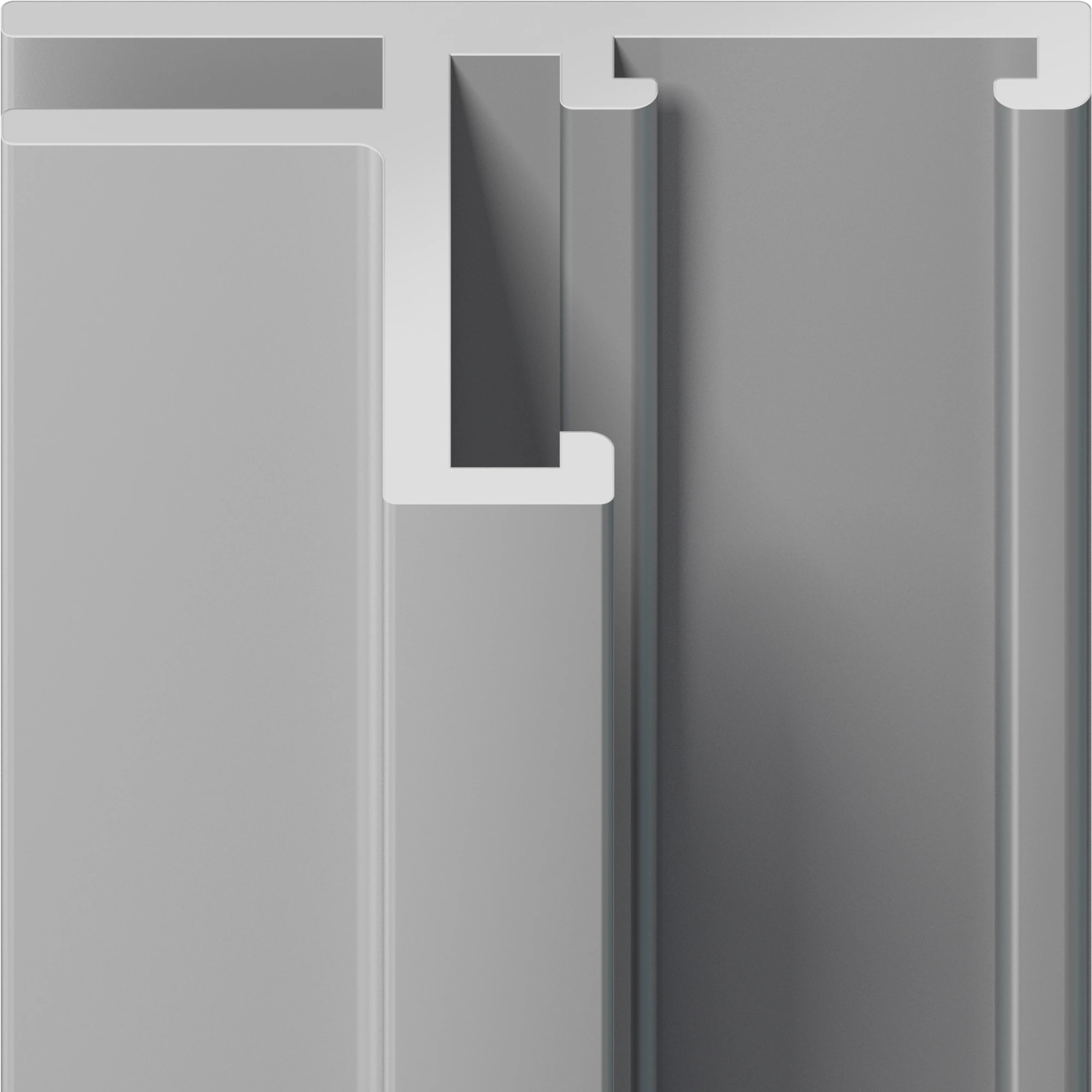

M 1302.01Tension fabric extr.fabricL 6000 × W 40 × H 28 mm

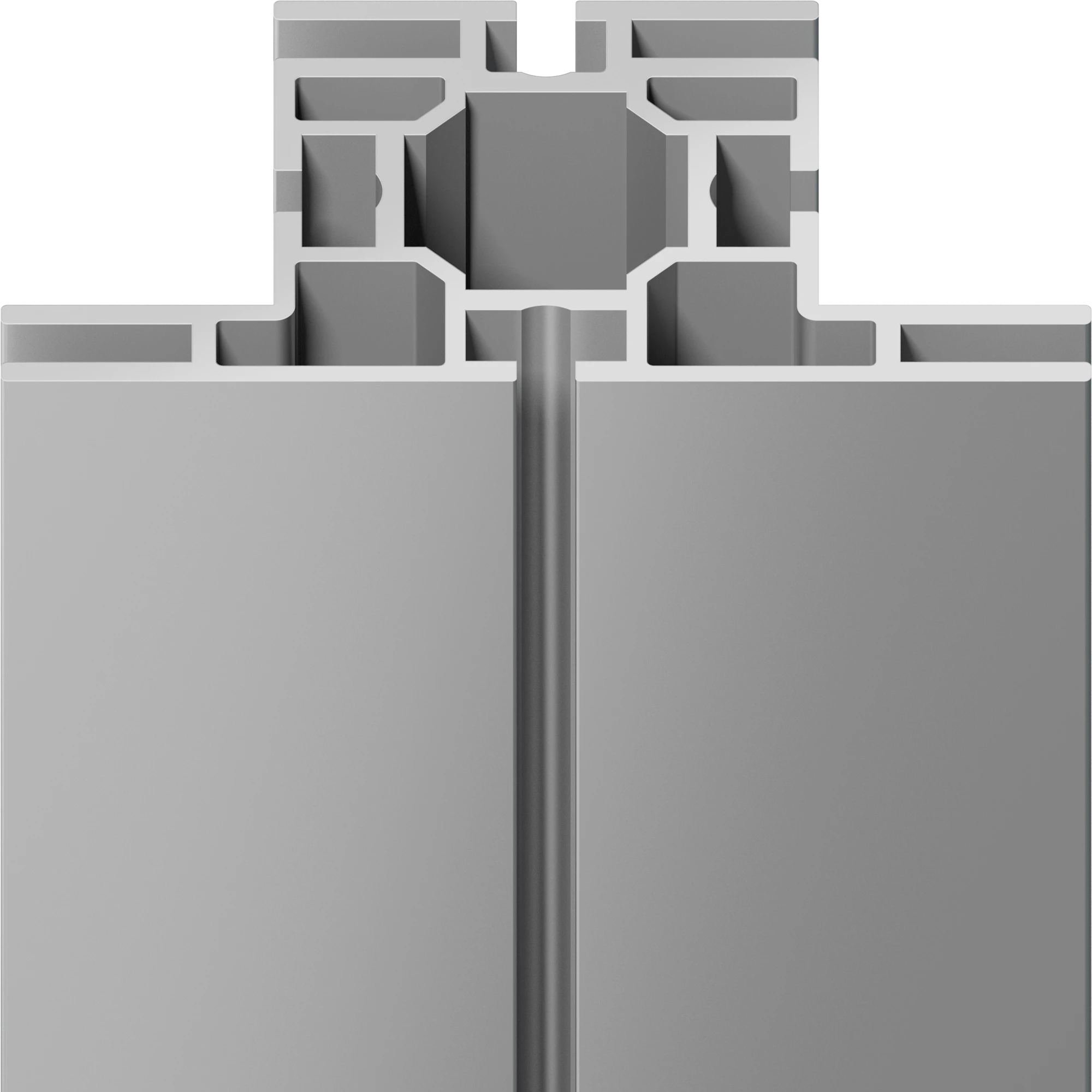

M 1304.01Tension fabric extr.single or double sidedfabricL 6000 × W 80 × H 40 mm

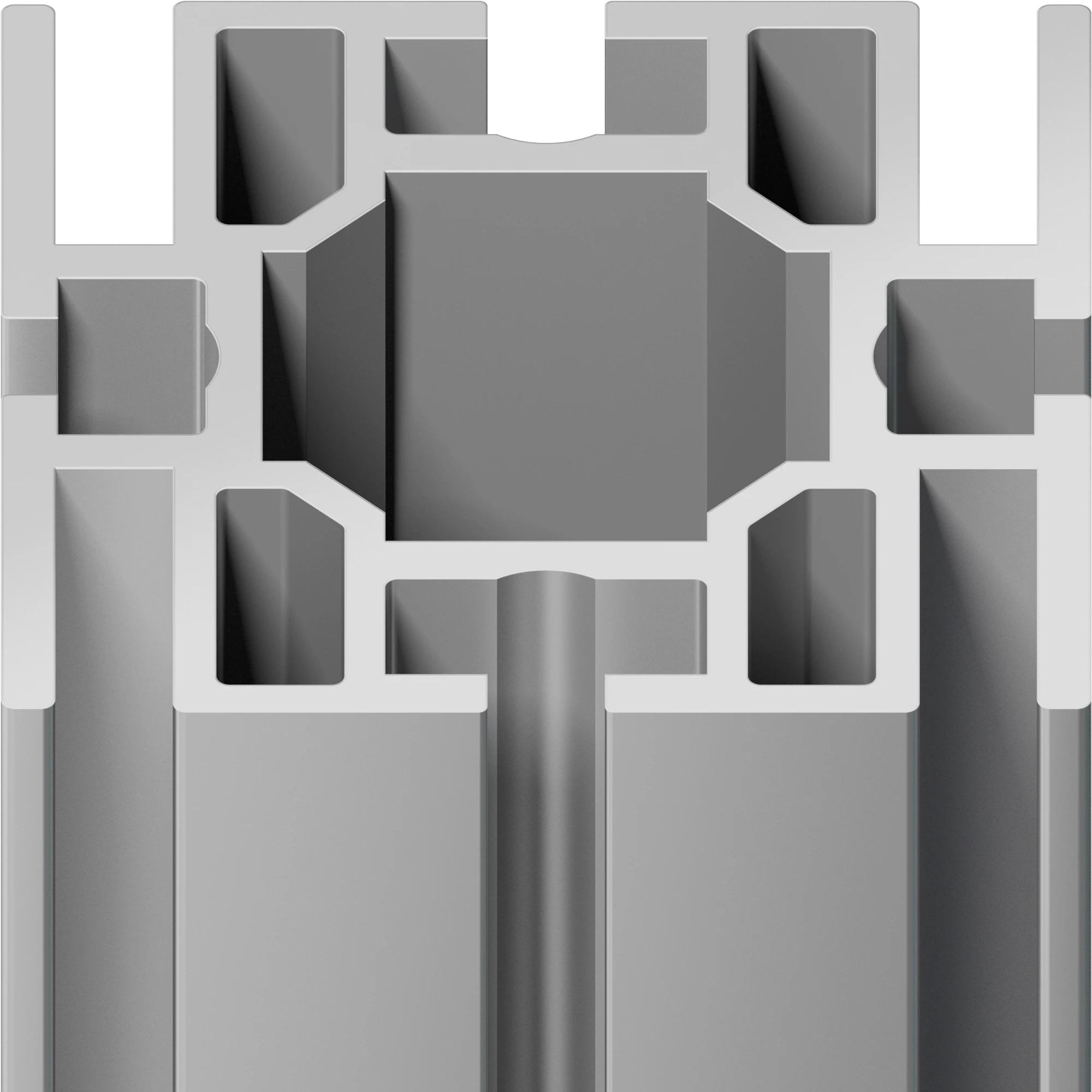

M 1305.01Tension fabric extr.for double sided fabricL 6000 × W 40 × H 40 mm

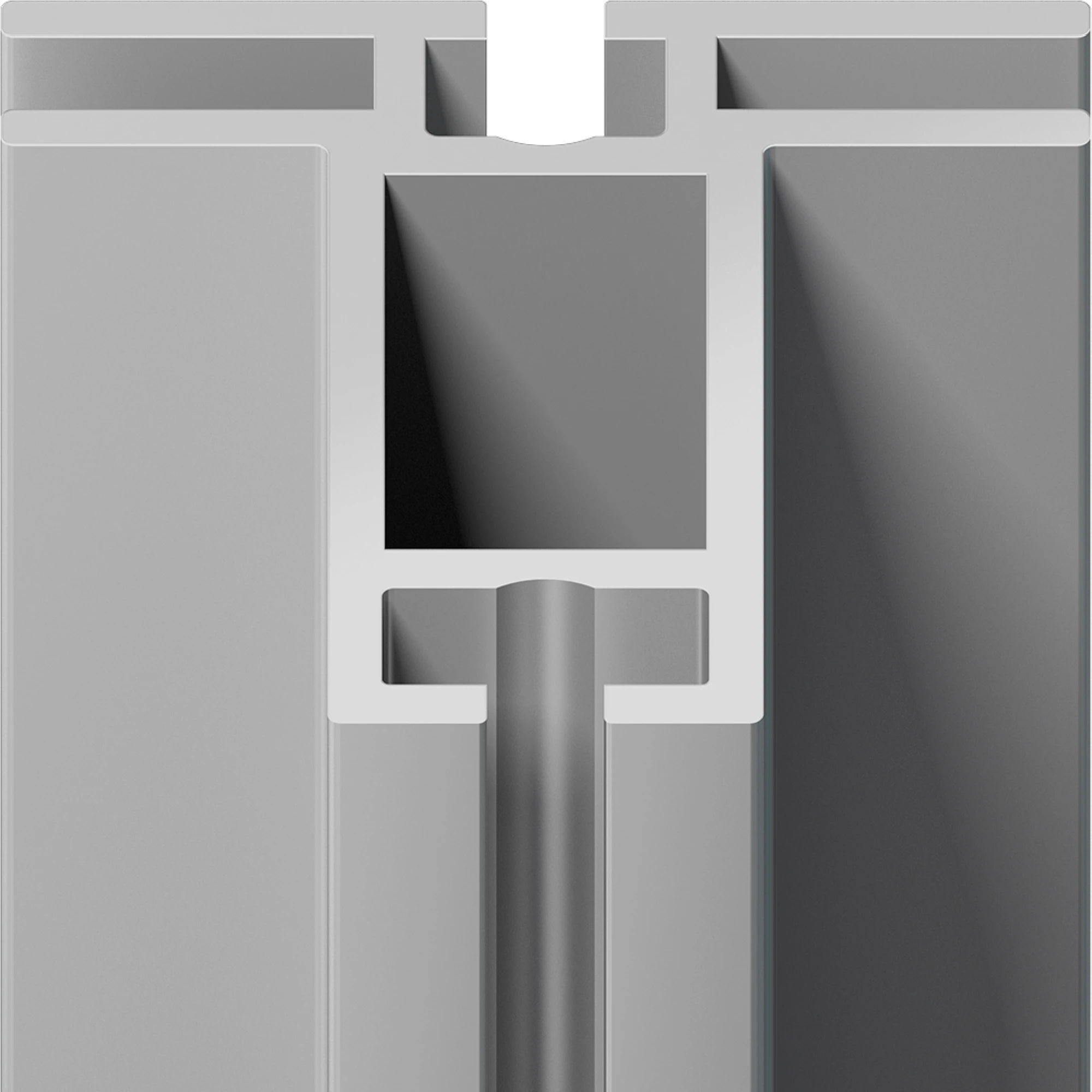

M 1307.01Tension fabric extr.for double-sided fabricL 6000 × W 40 × H 40 mm

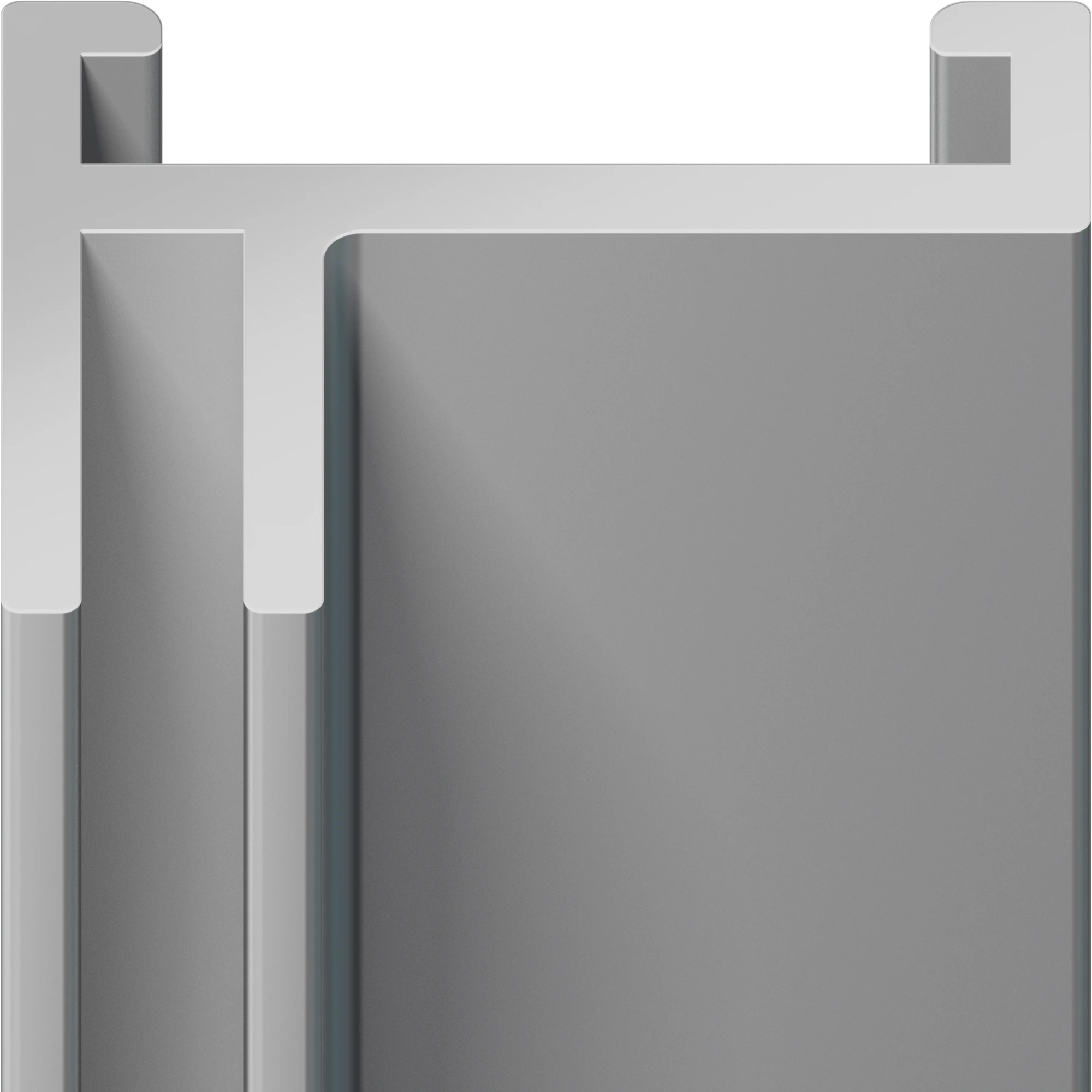

M 1309.01Tension fabric extr.up to DIN A0for wall fixingL 6000 × W 22.5 × H 27 mm

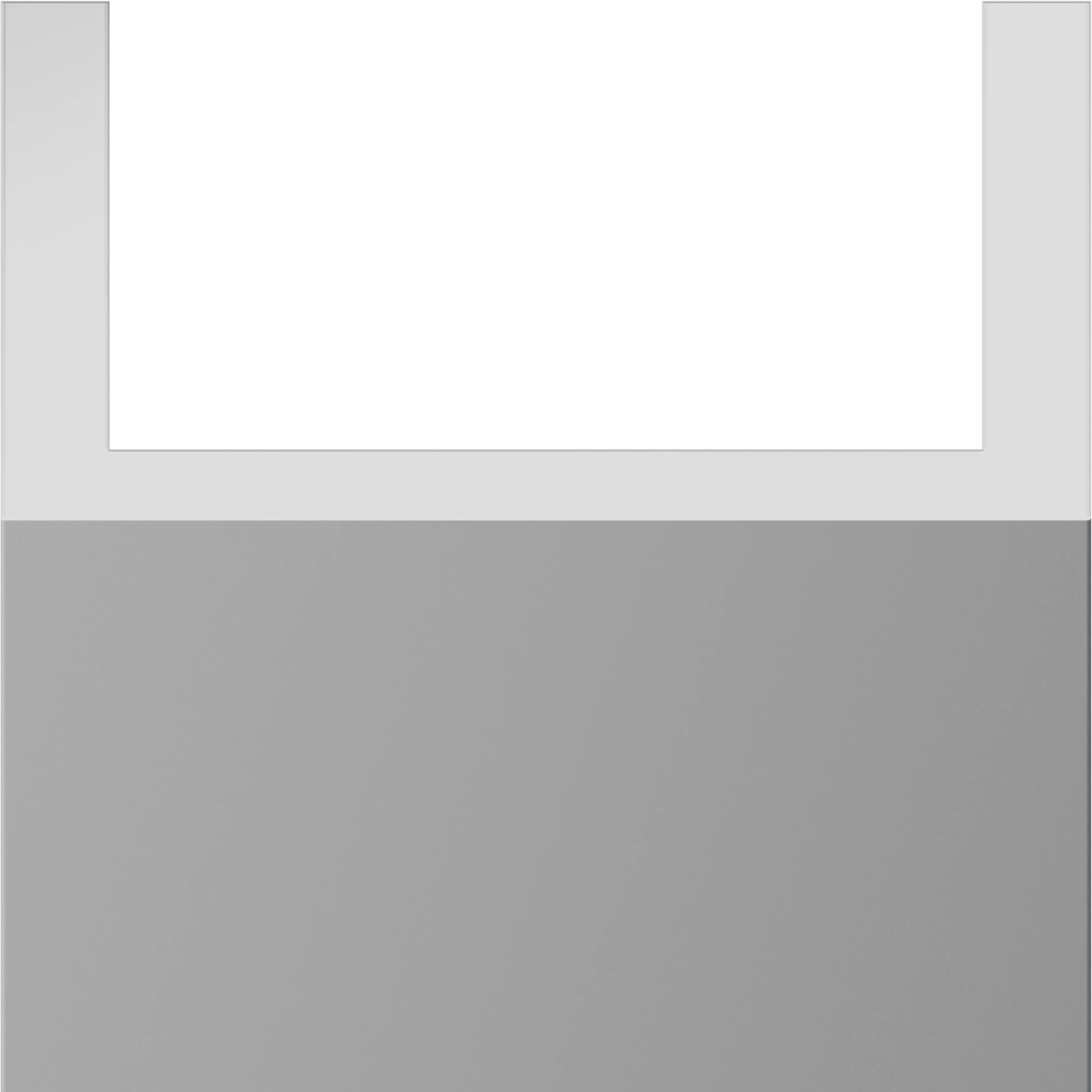

M 1312.00U-channel extrusionbracingfor M 1302L 6000 × W 20 × H 15 mm

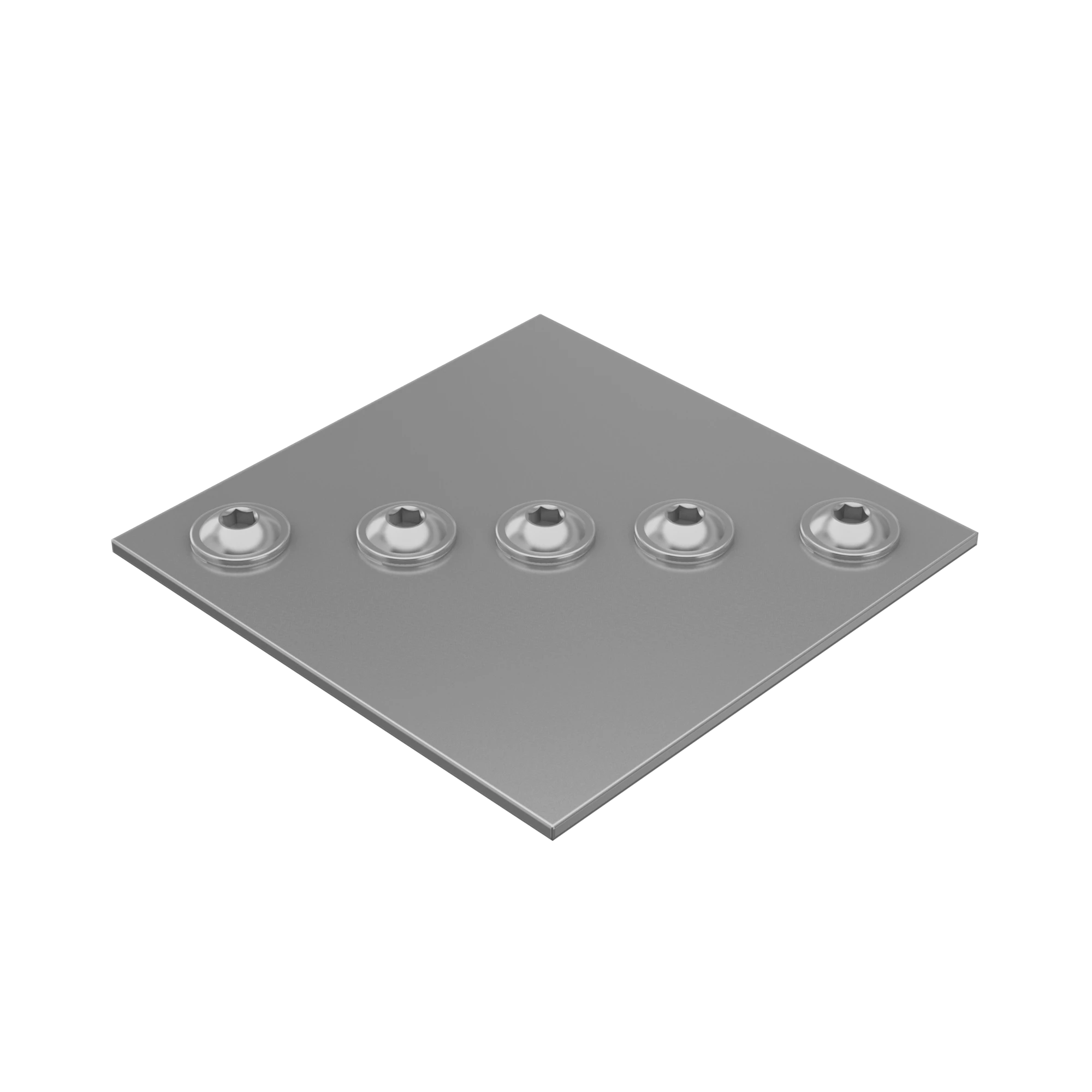

M 1314.37Internal connectorbracingfor M 1302L 80 × W 80 × H 2 mm

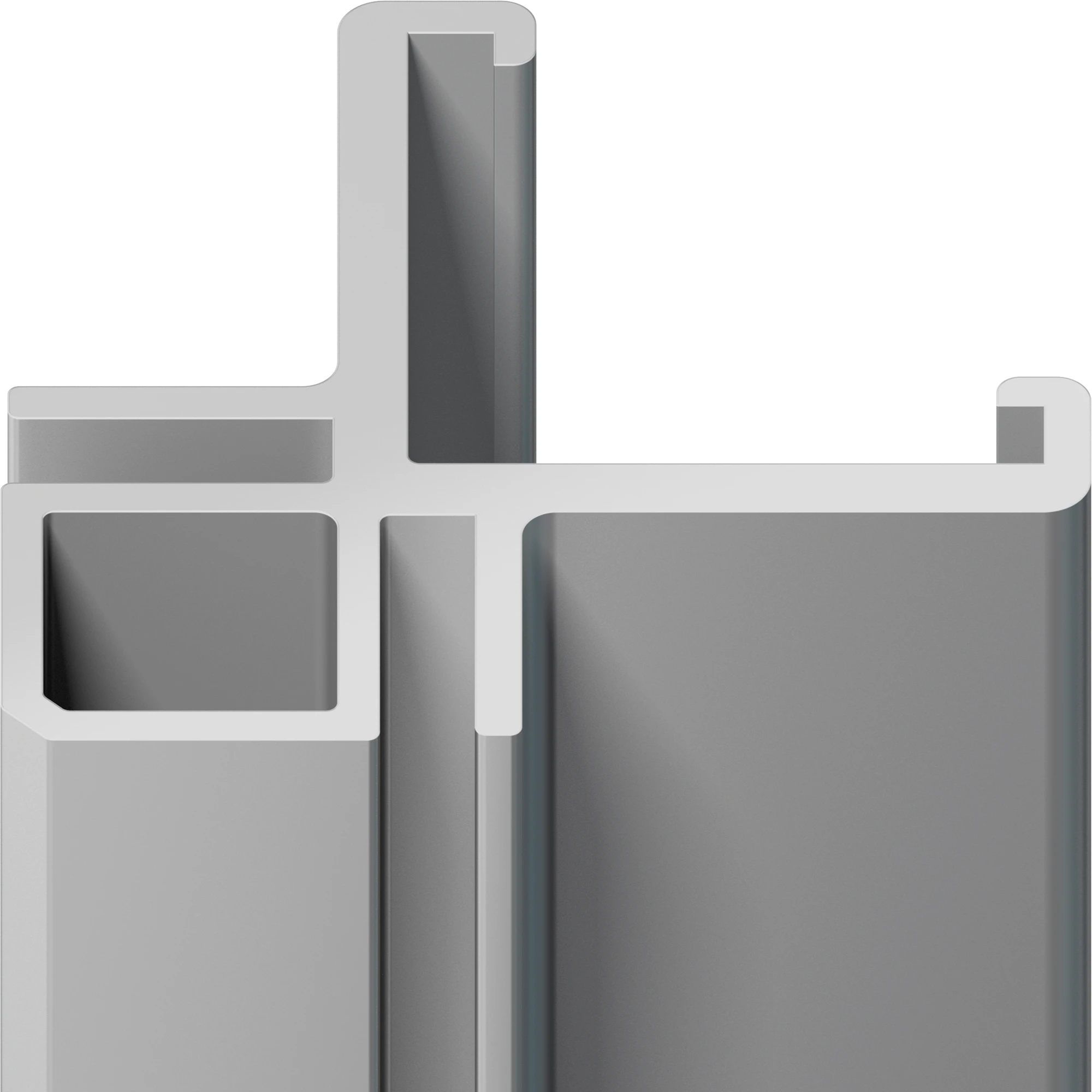

M 1332.01Tension fabric extr.90° cornerfor cubeL 6000 × W 46 × H 46 mm

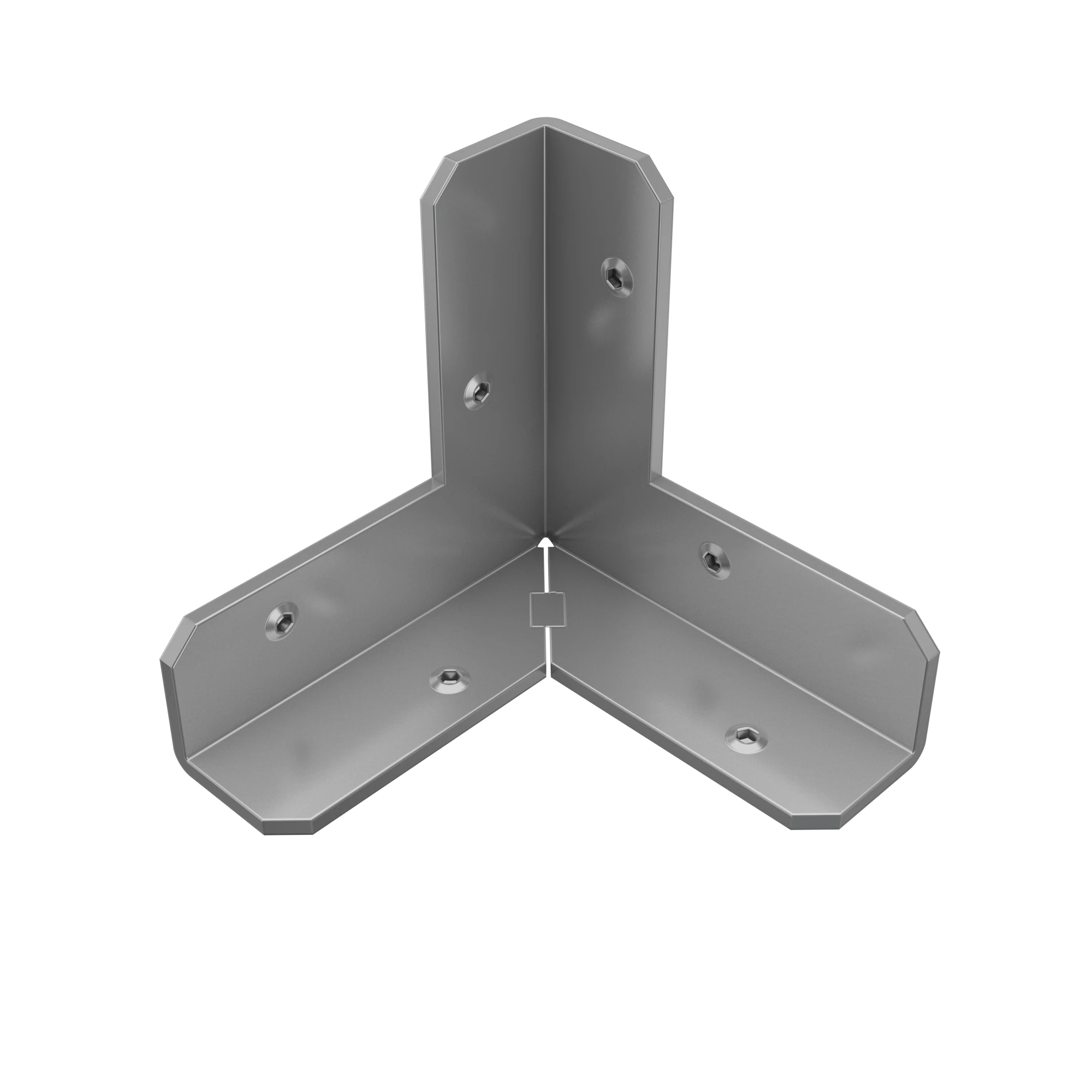

M 1334.37Knuckleinternalfor 3 × M 1332L 80 × W 80 × H 80 mm

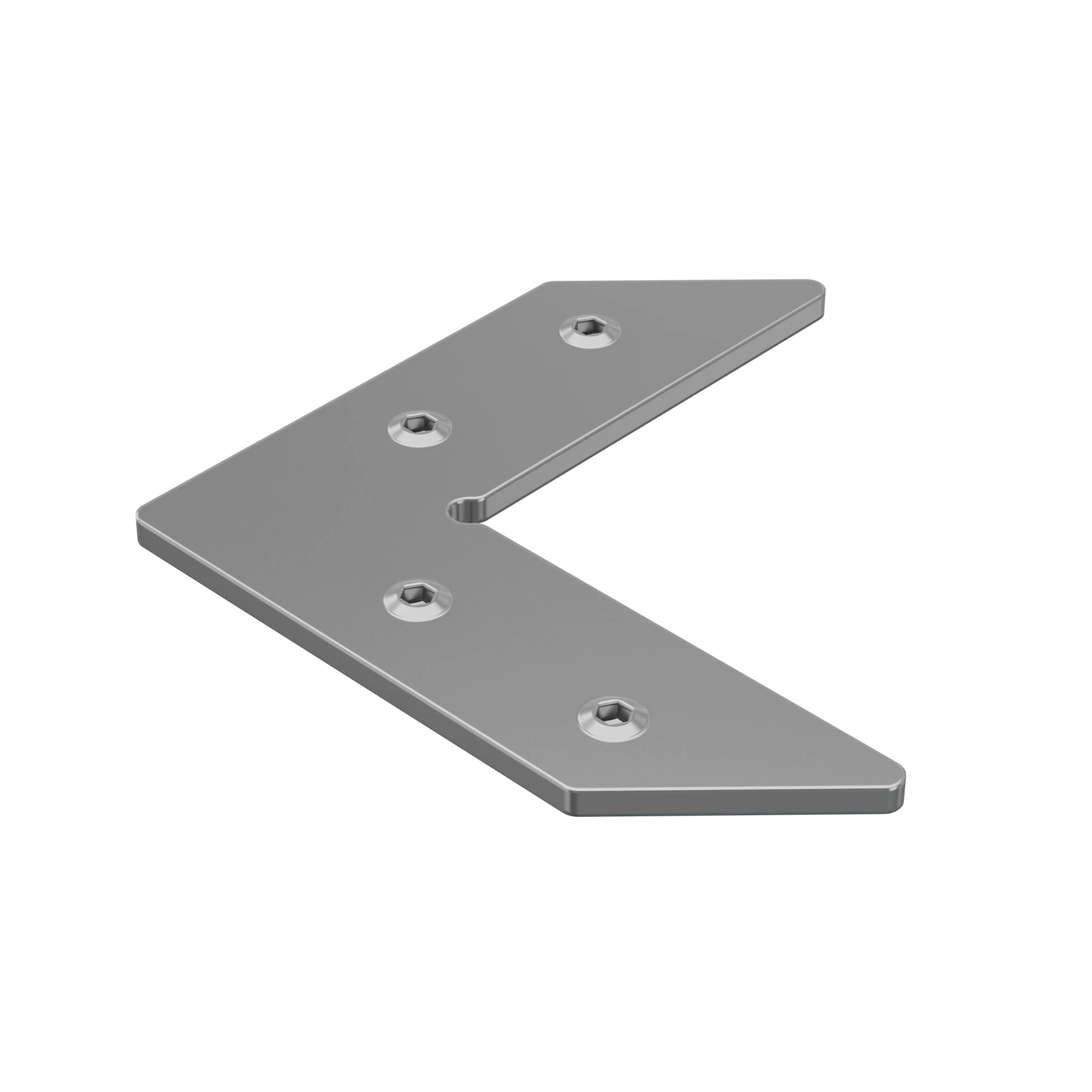

M 1335.37Corner connectorfor M 1302/M 1309L 82 × W 82 × H 3 mm

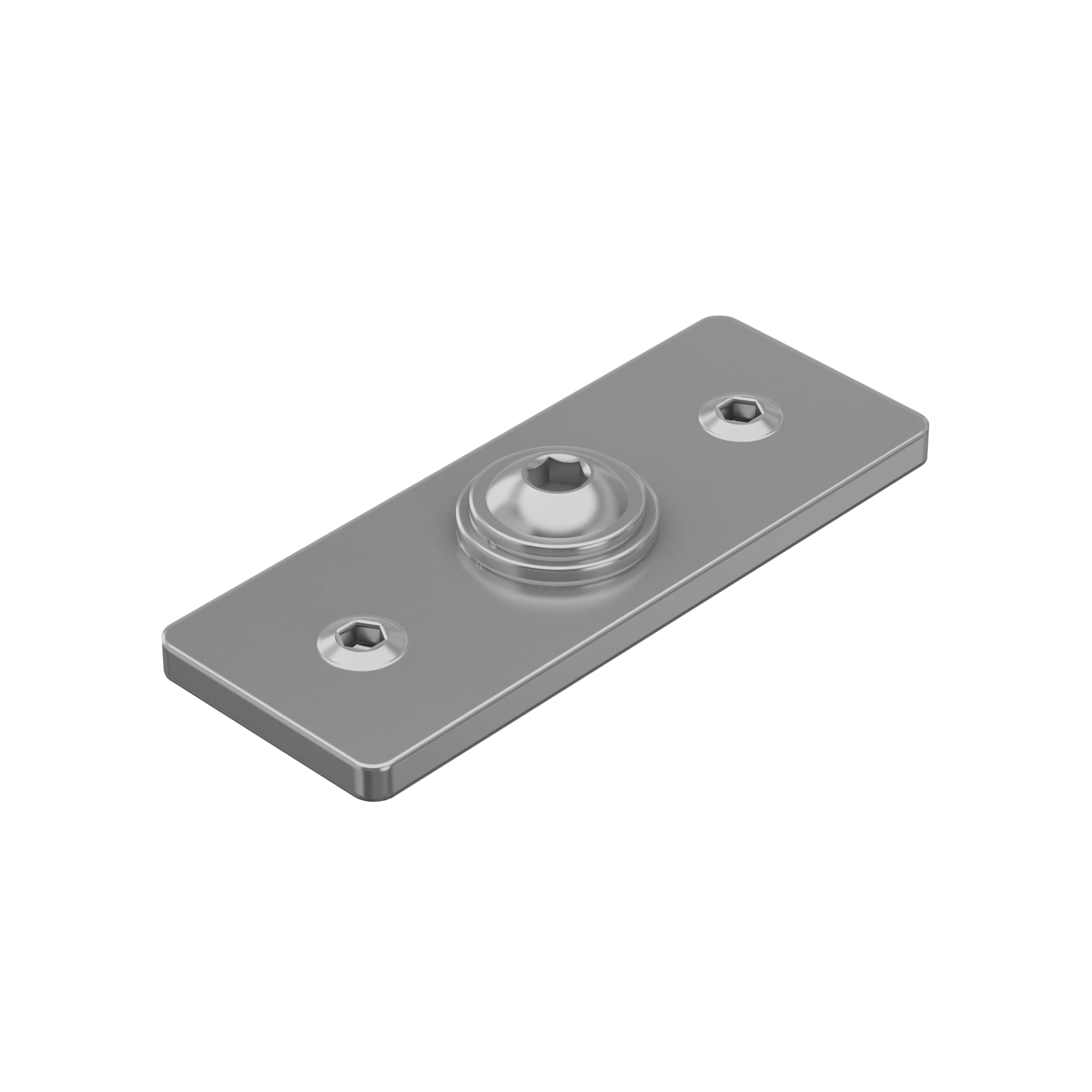

M 1336.37Internal connectorfor M 1302L 60 × W 23 × H 3 mm

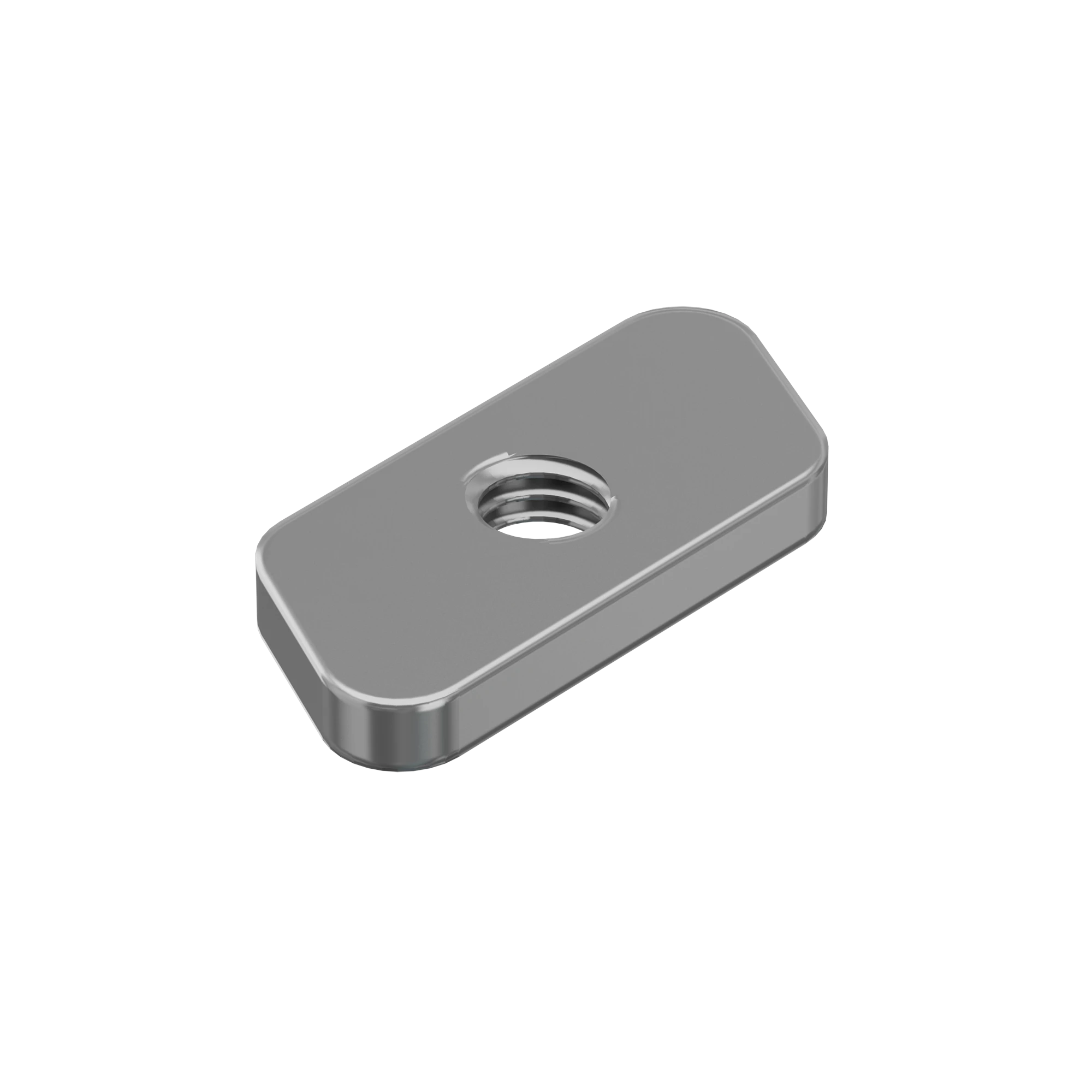

M 1338.37Threaded platefor bracingfor M 1302L 22 × W 12 × H 3 mm

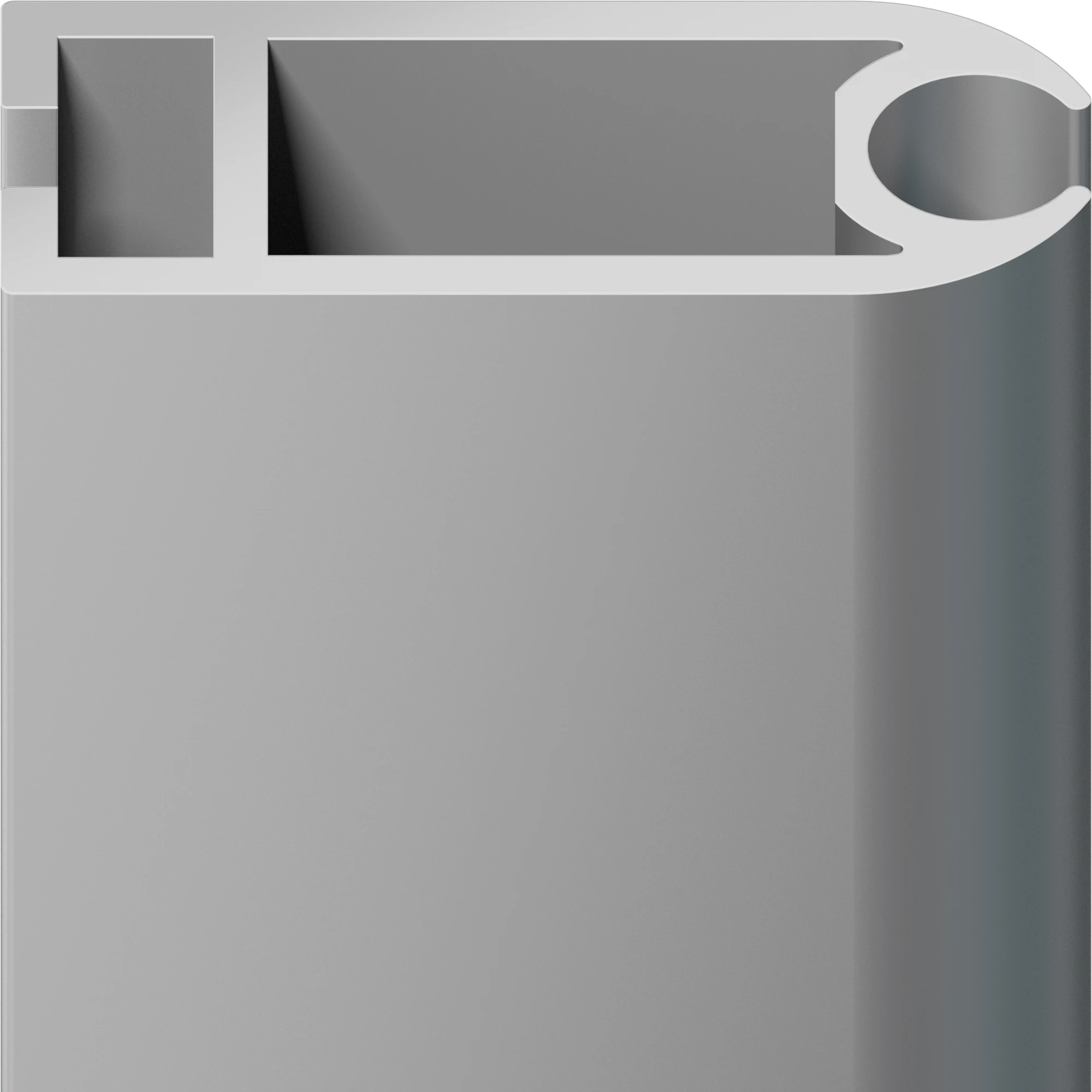

M 1354.01Fabric suspension extr.for round keder4-6 mm dia.L 5000 × W 40 × H 16 mm

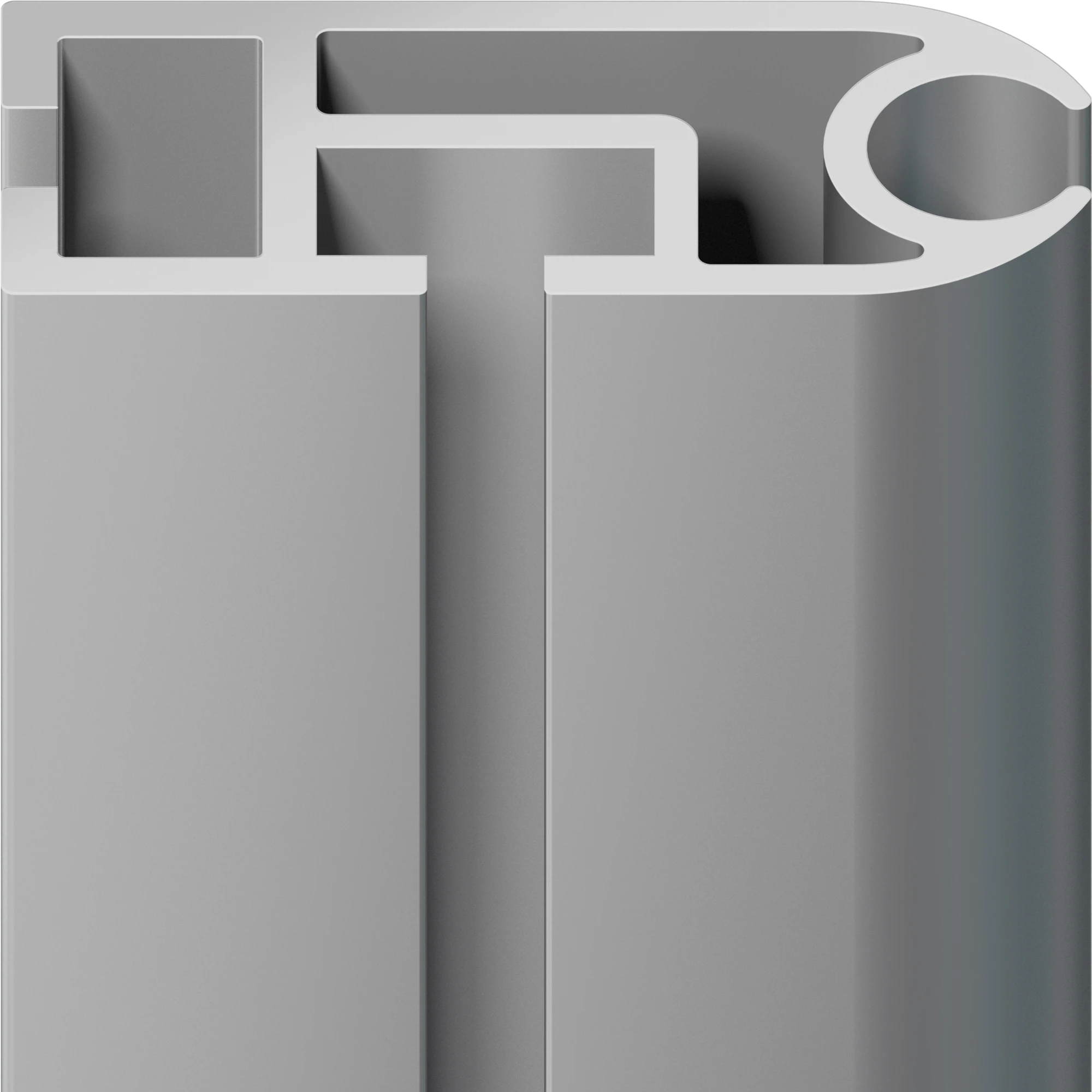

M 1356.01Fabric suspension extr.for round keder4-6 mm dia.L 5000 × W 40 × H 16 mm
Accessories
37

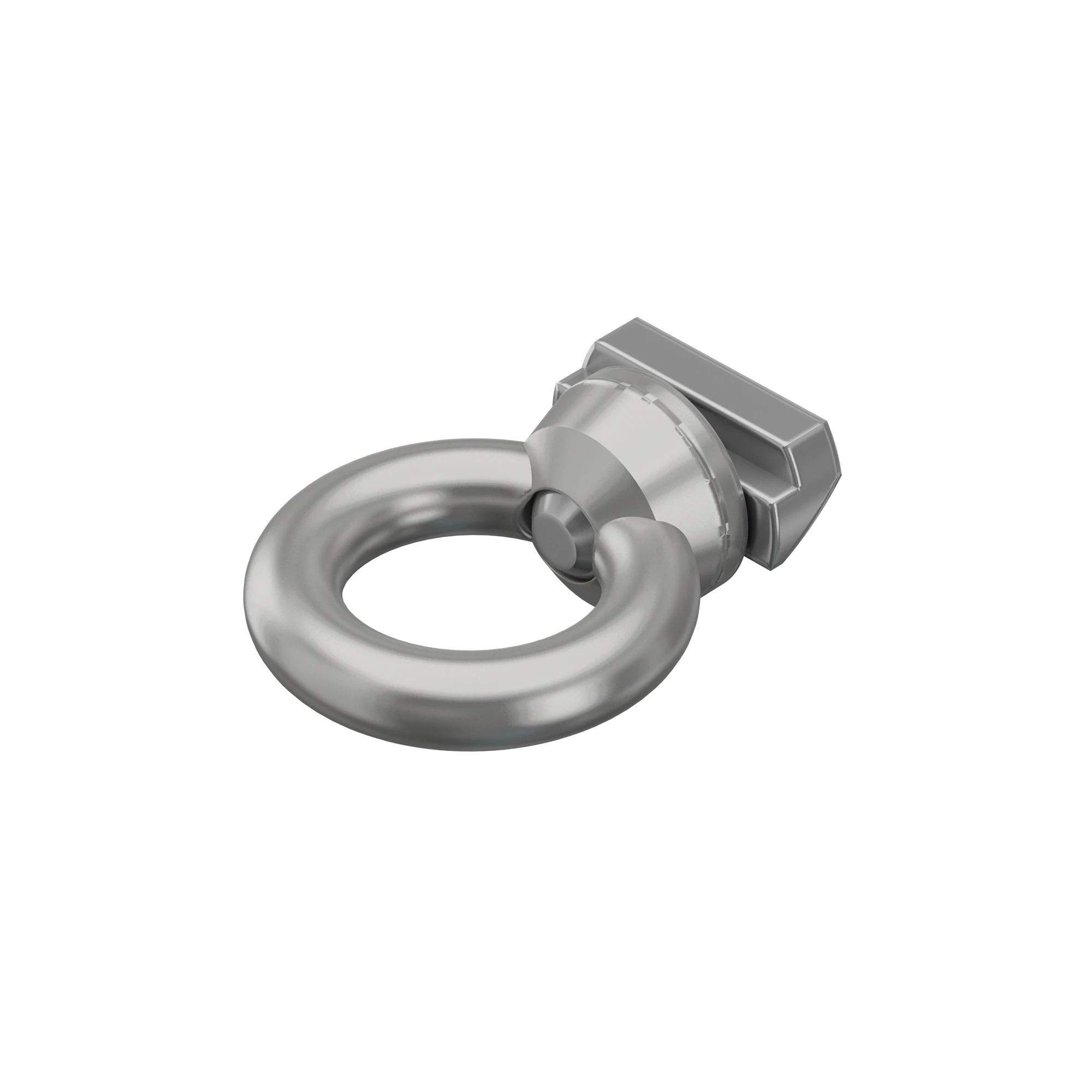

E 218.41Screw eyemax. 45 kgOpening 12.3 mm dia.L 28 × W 22 × H 12 mm

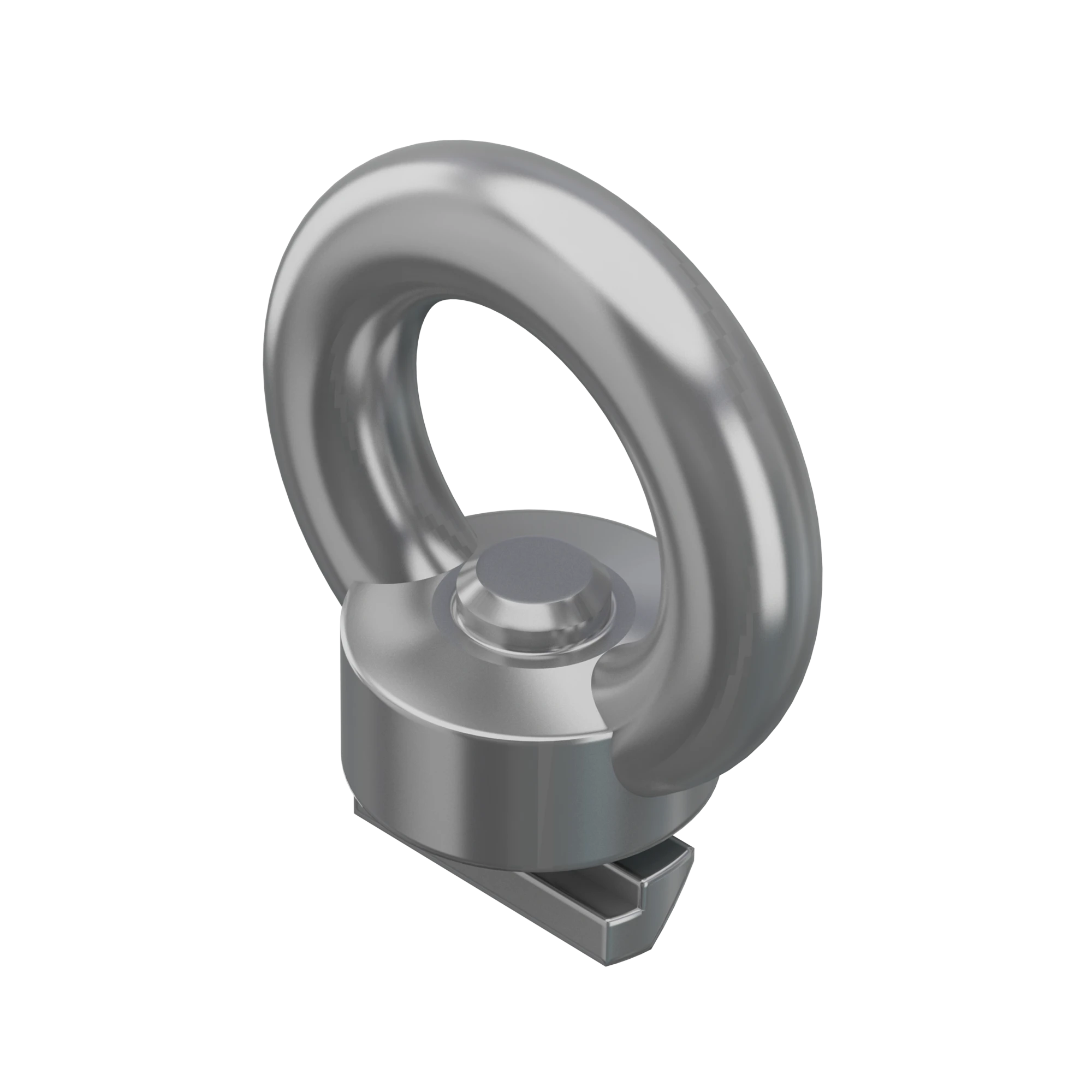

M 1233.37Screw eyemax. 35 kgOpening 20 mm dia.L 36 × W 20 × H 36 mm

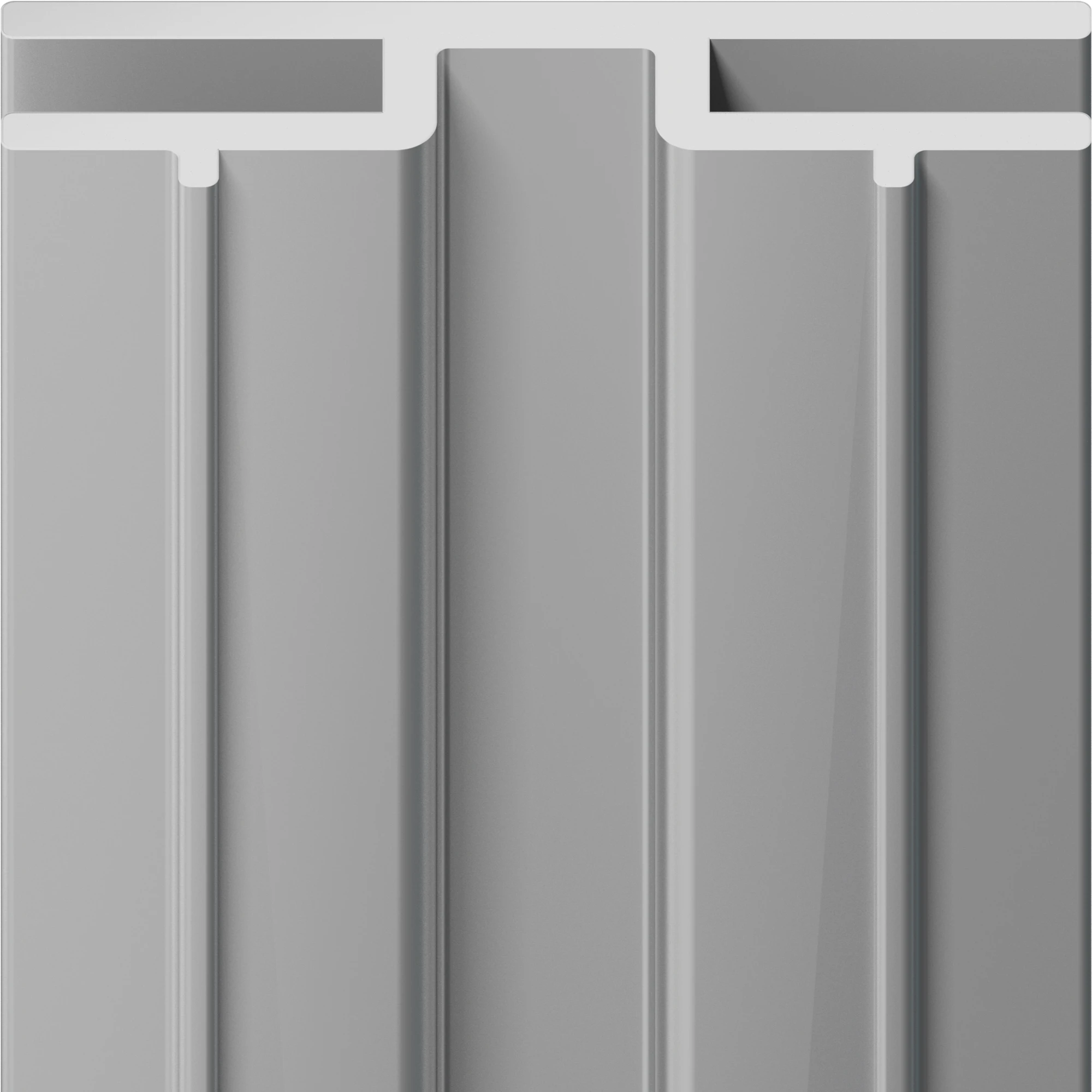

M 1310.01Tension fabric extr.for double sided fabricL 6000 × W 40 × H 10 mm
M 1313.50Silicone edge100 meter rollfor fabricW 14 × H 3 mm

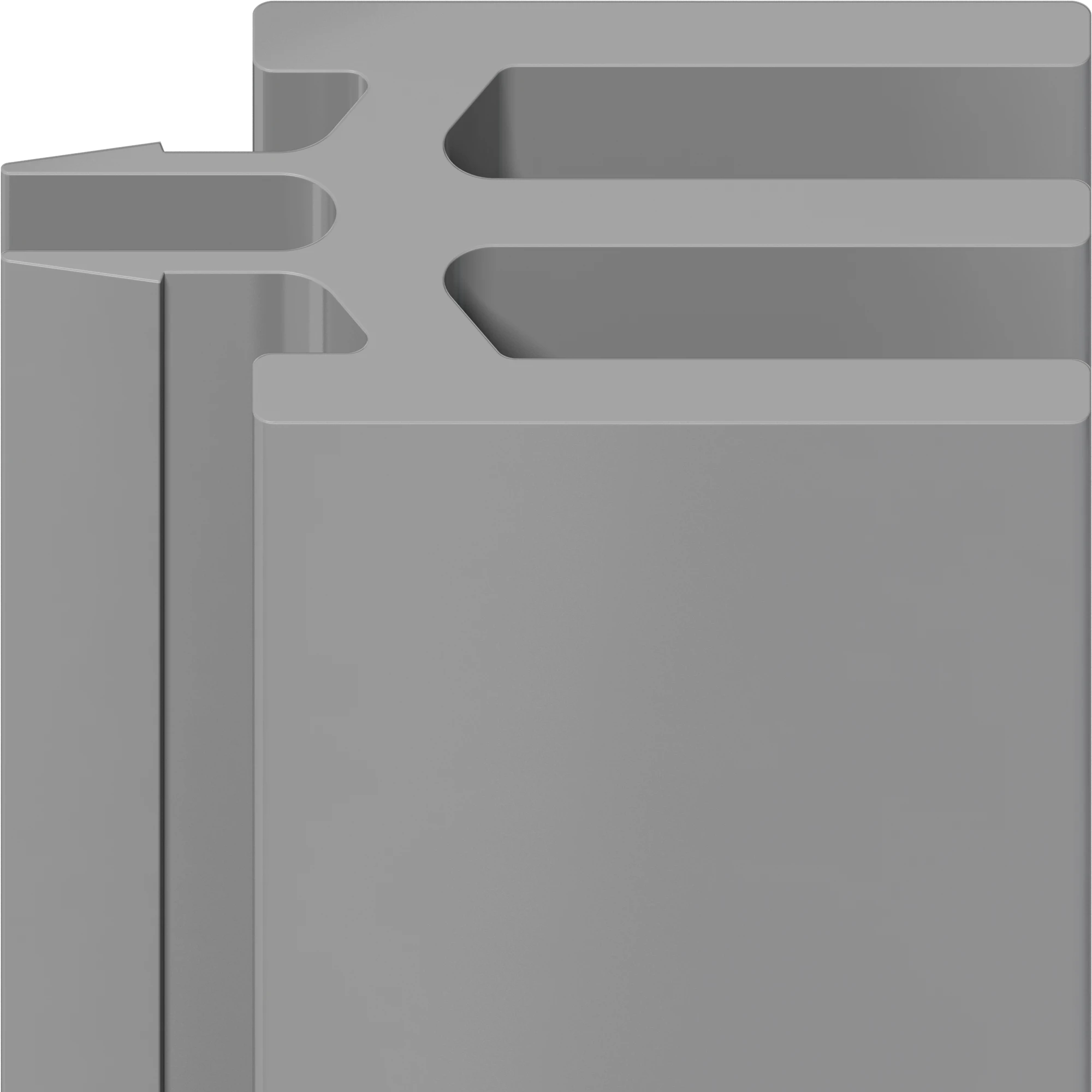

M 1319.35Tension fabric extr.for system groove 4.3 mmfor single sided fabricL 6000 × W 15 × H 20 mm

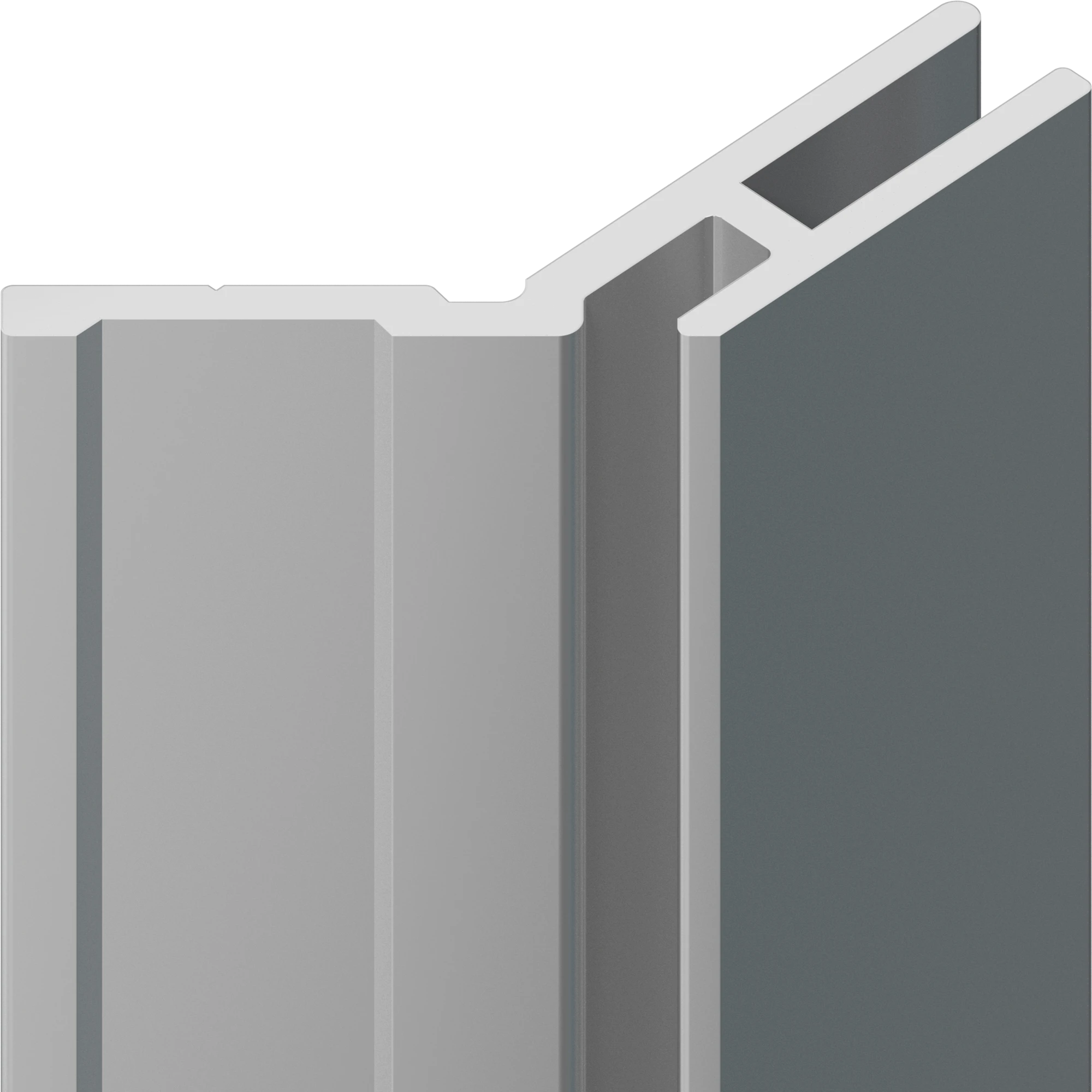

M 1321.01Tension fabric extr.45°for single sided fabricL 6000 × W 43 × H 20 mm

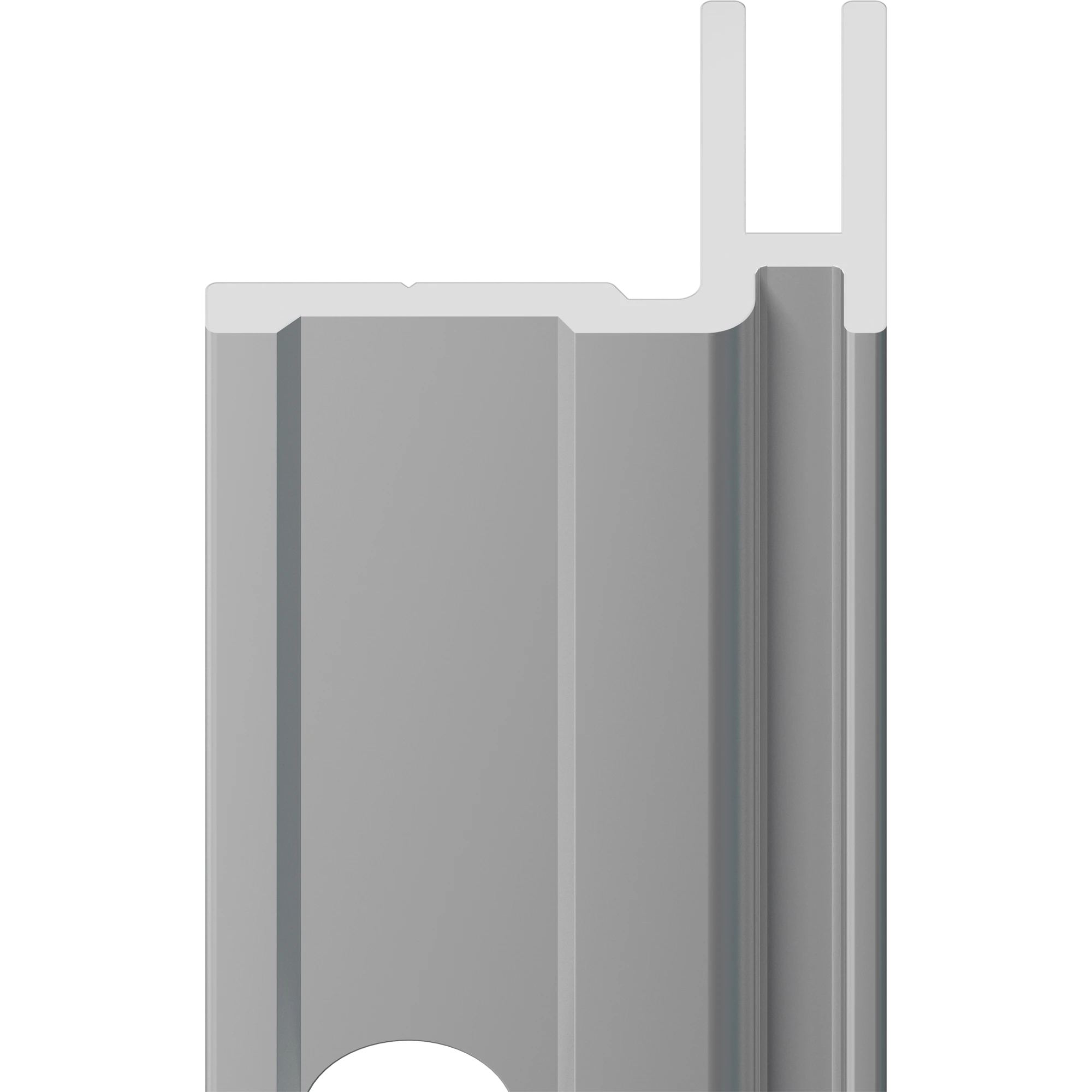

M 1322.01Tension fabric extr.for single sided fabricL 6000 × W 28.5 × H 20 mm

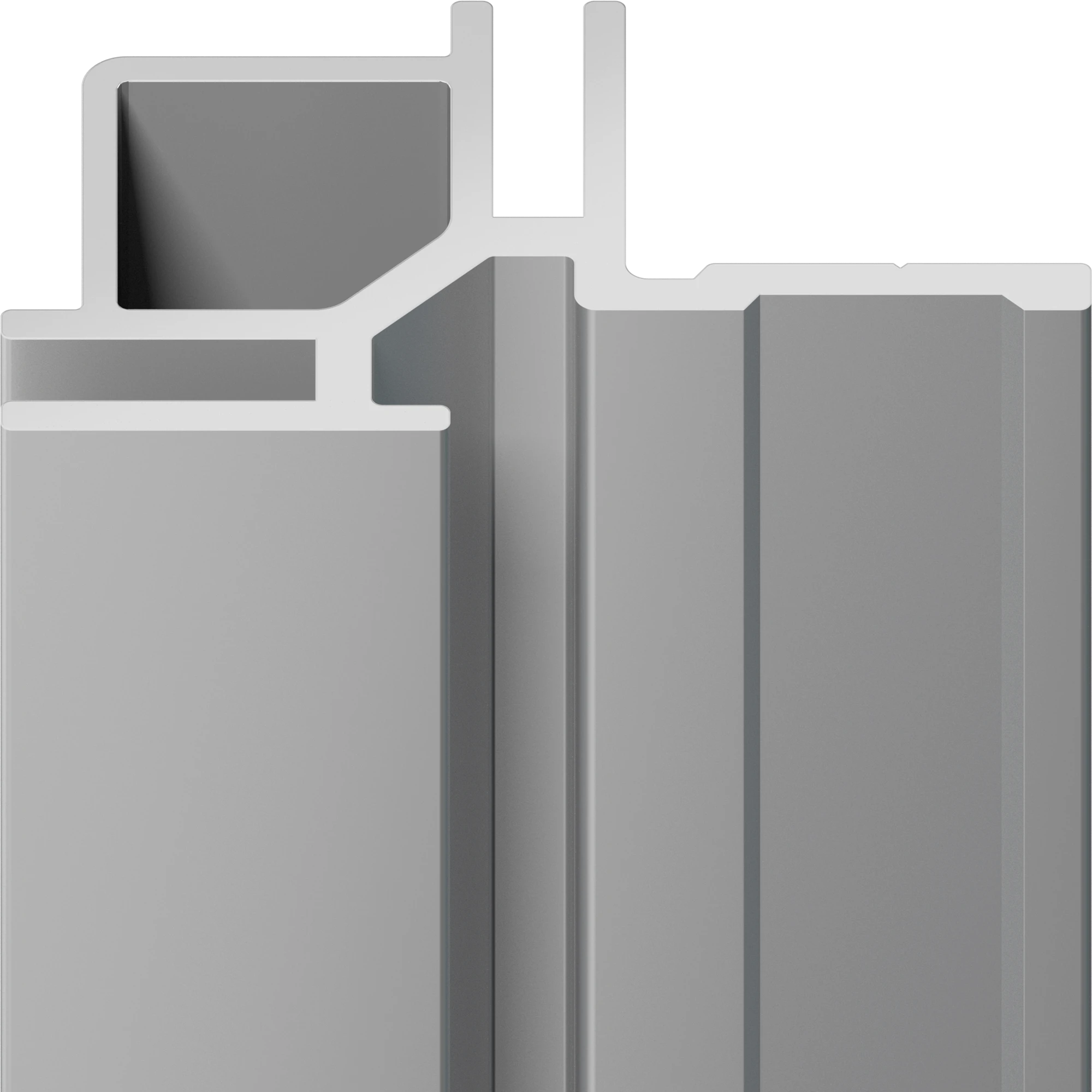

M 1322/E.01Tension fabric extr.90° outer cornerfor single sided fabricL 6000 × W 48.5 × H 27.8 mm

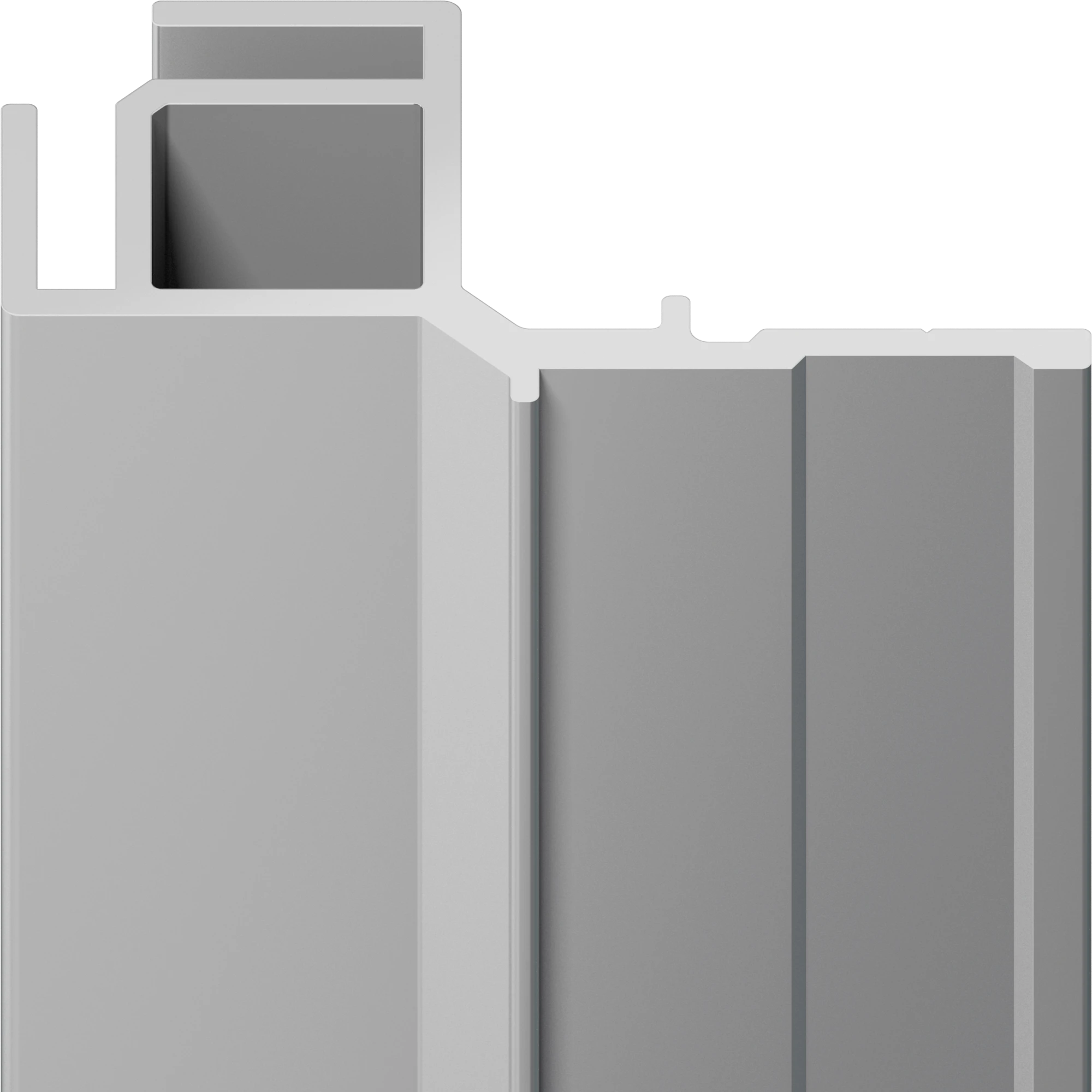

M 1322/I.01Tension fabric extr.90° internal cornerfor single sided fabricL 6000 × W 56.3 × H 27.8 mm

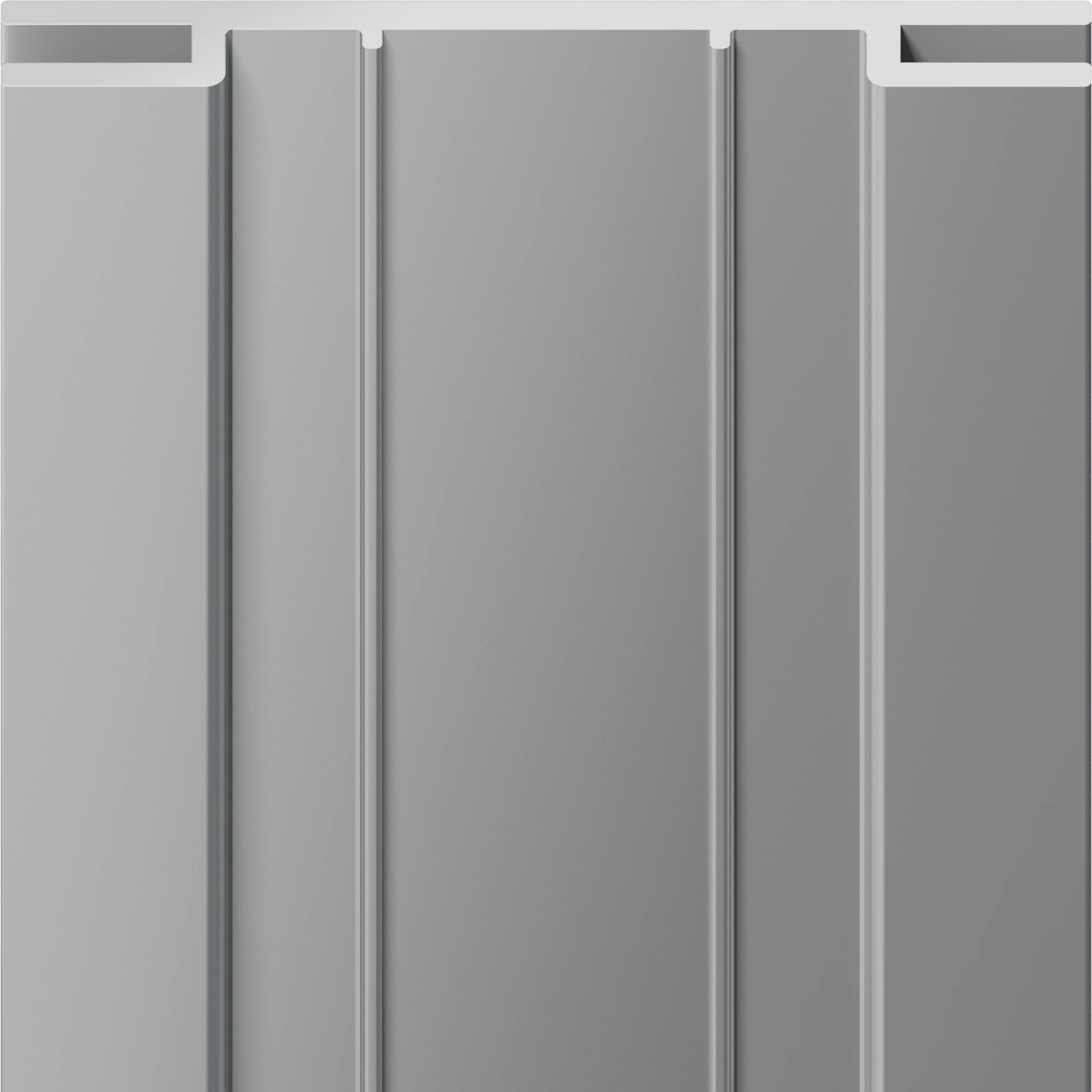

M 1325.01Tension fabric extr.for double sided fabricL 6000 × W 80 × H 9 mm

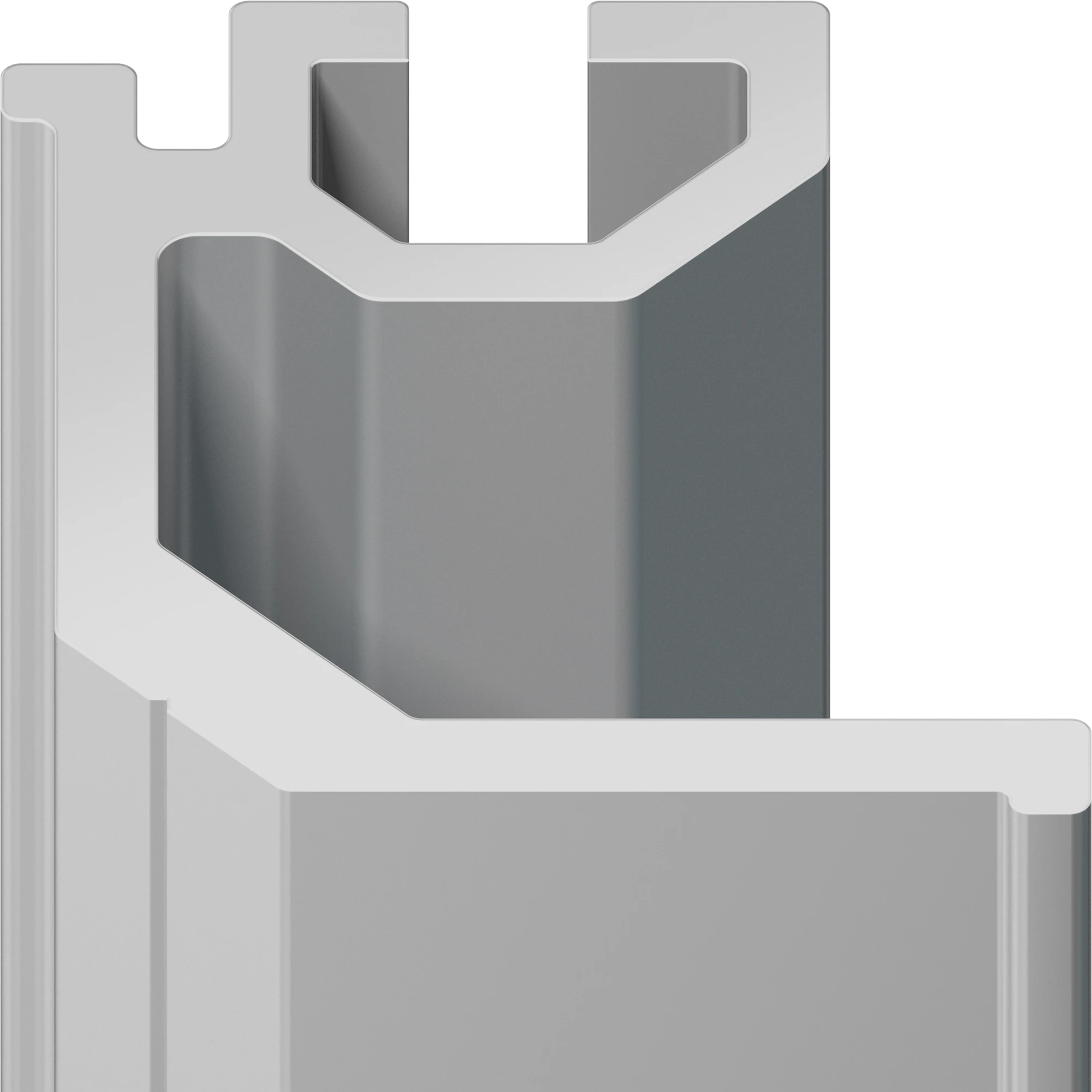

M 1326.01Connecting extrusionfor M 1332L 6000 × W 28 × H 26 mm

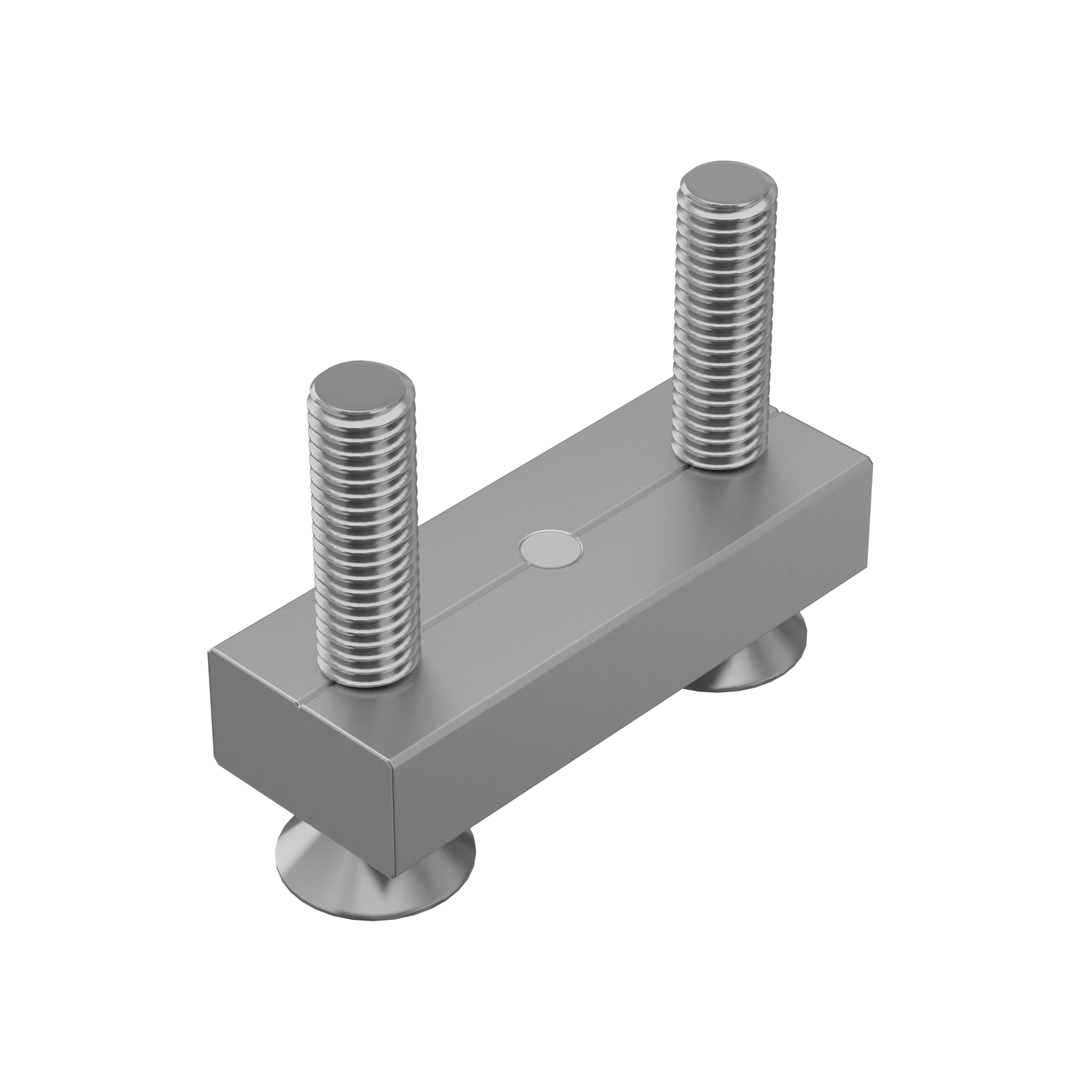

M 1327.00Threaded platelock chamber 21 × 12 mm

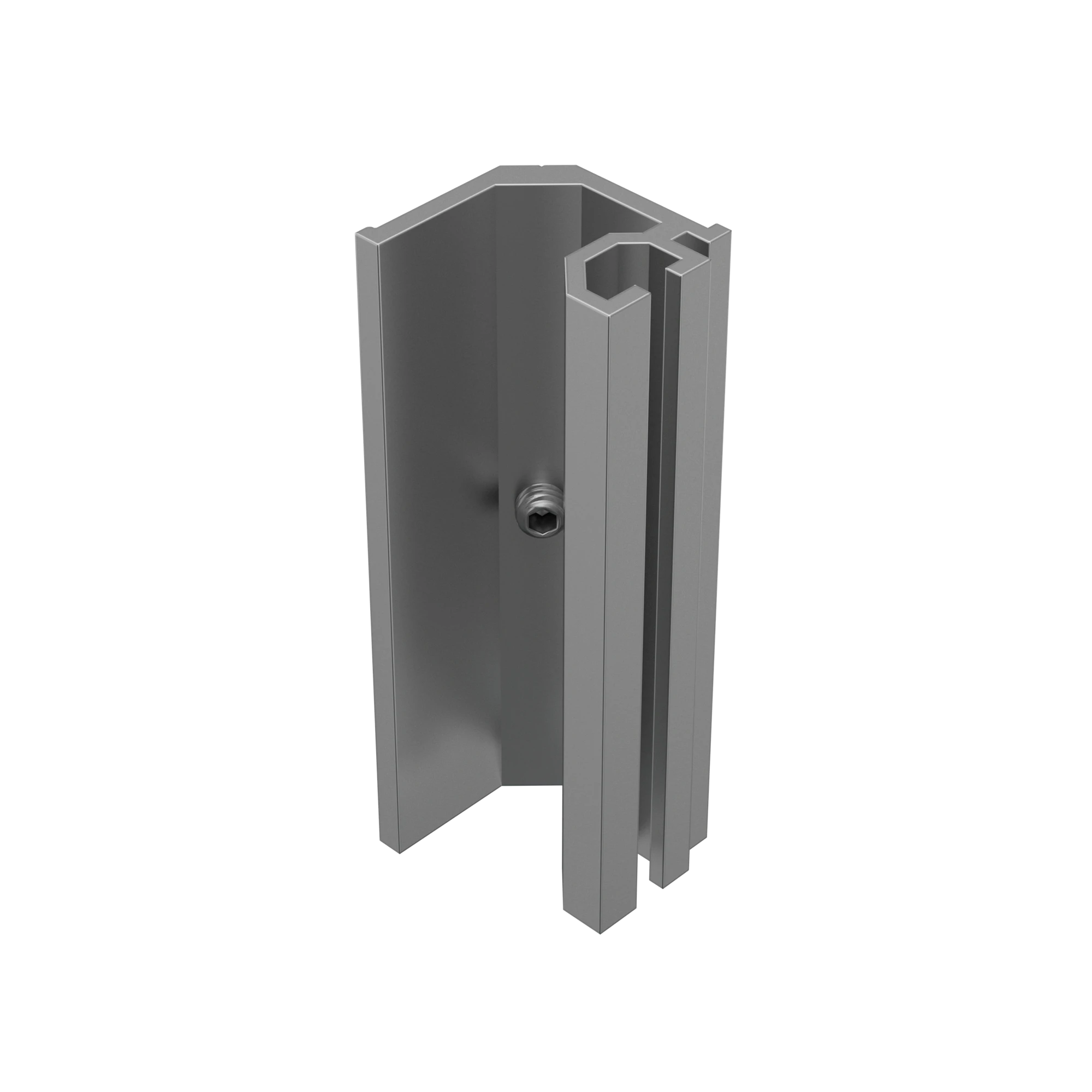

M 1329.01Adaptorfor M 1332L 80 × W 28 × H 20 mm

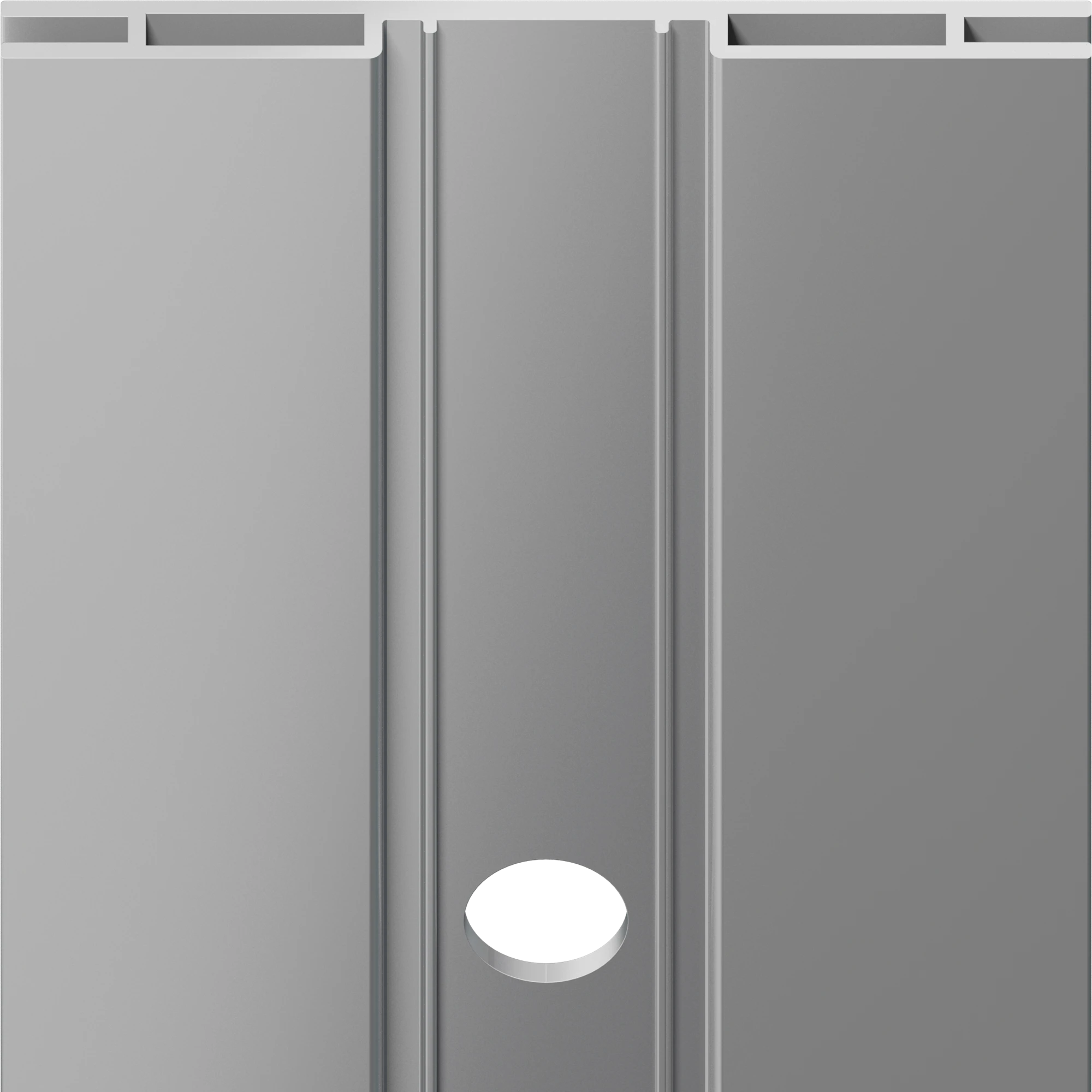

M 1330.01Tension fabric extr.for double sided fabricL 6000 × W 120 × H 9 mm

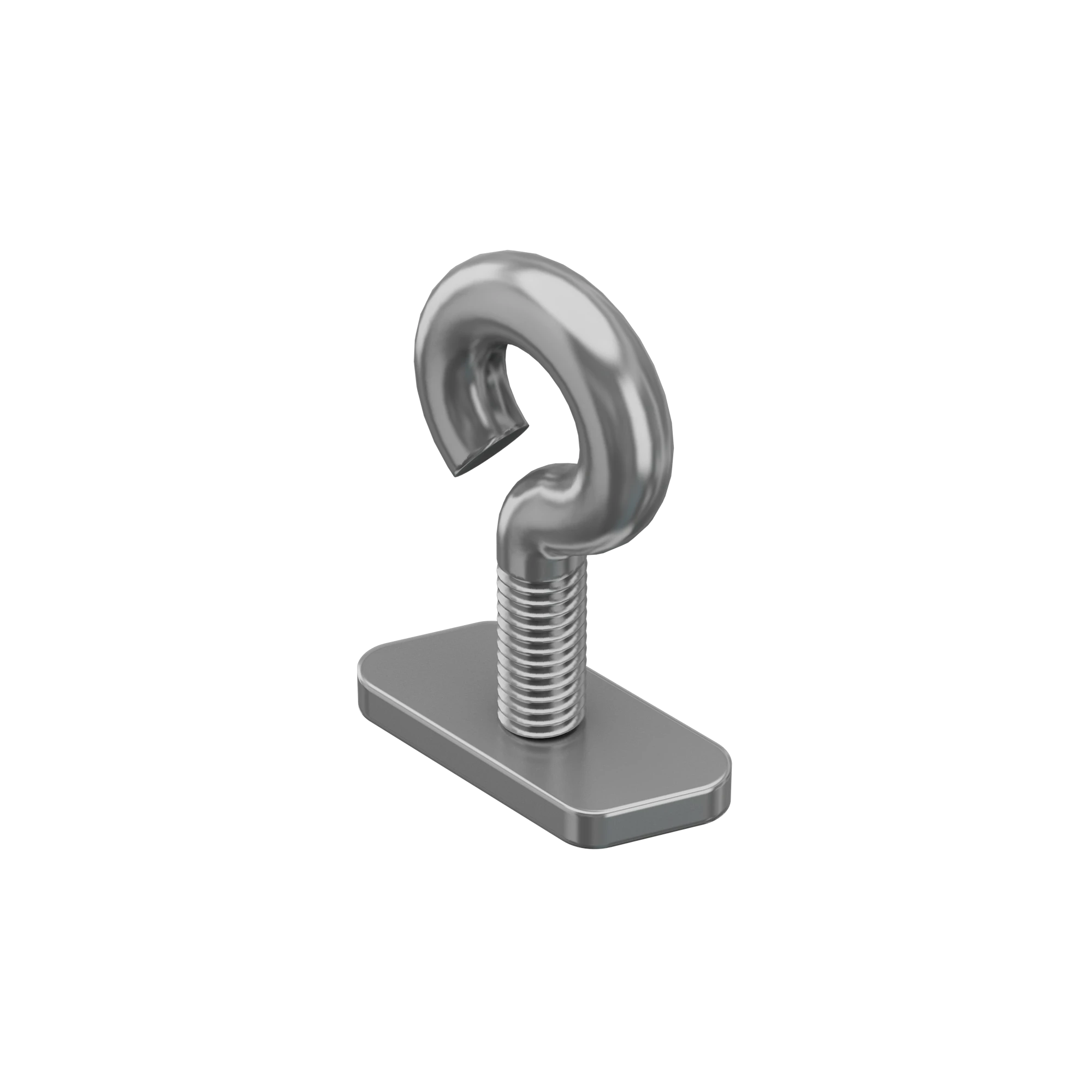

M 1337.37Screw eyefor M 1302

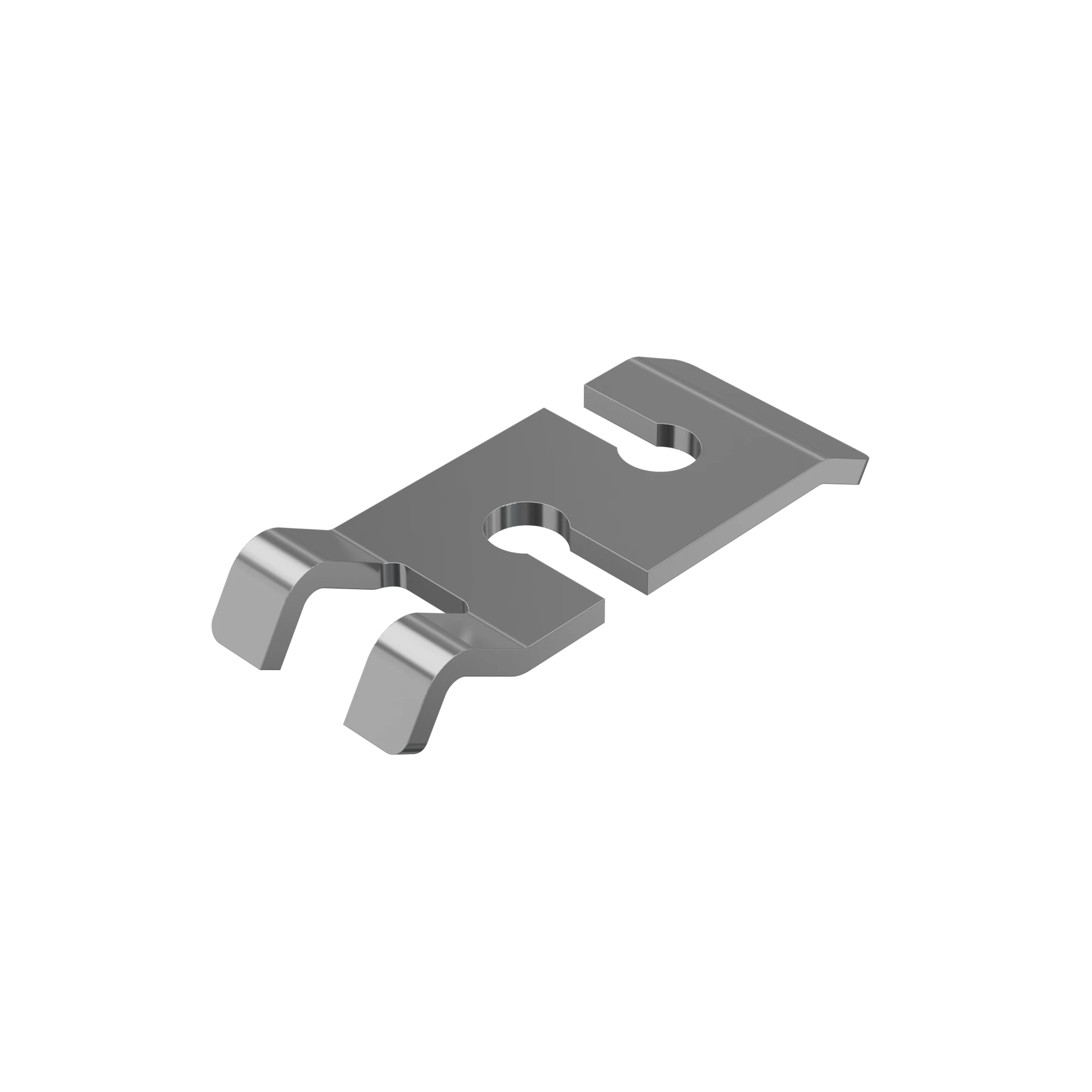

M 1339.37Retainerfor extrusions 80/120 mmfor fixing set M 1348L 70.7 × W 28 × H 10 mm
